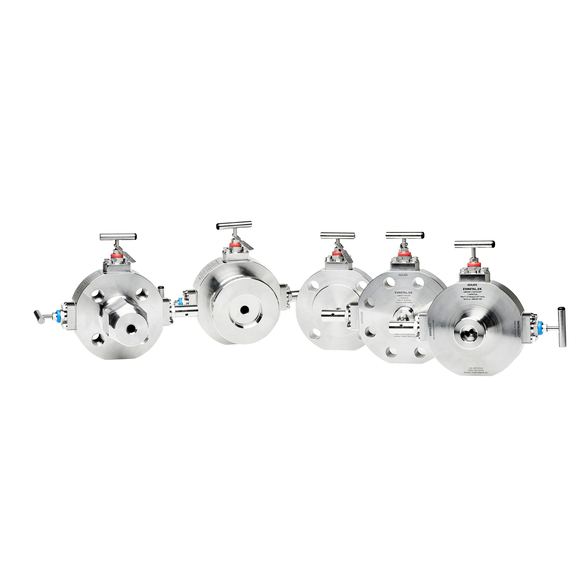

SDBB AISI316
SDBB AISI316
SDBB AISI316 SDBB AISI316

SDBB AISI316

Instruction & Mainteance guide (786 kB)
Materials list (BOM) (48 kB)
Design pressure table (38 kB)
GA, 10#1500 1 RTJxNPT (65 kB)
A - API 6FA Fire Test 0,5 inch Class 300 - 600 (1 MB)
B - API 6FA 600-900 & 1-2 - 1 (563 kB)
C- API 6FA Fire Test 0.5 inch Class 1500 - 2500 (1 MB)
D - API 6FA Fire Test - 1 inch Class 150 - 300 (1 MB)
E - API 6FA Fire Test 1 inch Class 600 - 900 (1 MB)
F - API 6FA Fire Test -1 inch Class 1500 - 2500 (1 MB)
ANSI Dimensions Table (Class#150 & Class#300) (101 kB)
ANSI Dimensions Table (Class#600 - Class#2500) (168 kB)

About the product

Material: AISI316

Note: All NPT treads are NPT female

ANSI Class Dimension Connection, Inlet Connection, Outlet Drain Article number
150
1/2"
3/4"
1"
2"
TPT
RF
RF
RF
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#150 1/2 NPTxNPT
10#150 3/4 RFxNPT
10#150 1 RFxNPT
10#150 2 RFxNPT
300
1/2"
3/4"
 1"
2"
2"
RF
RF
RF
RF
RF
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
RF
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#300 1/2 RFxNPT
10#300 3/4 RFxNPT
10#300 1 RFxNPT
10#300 2 RFxNPT
10#300 2 RFxRF
600
1/2"
3/4"
 1"
2"
2"
RTJ
RTJ
RTJ
RTJ
RTJ
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
RTJ
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#600 1/2 RTJxNPT
10#600 3/4 RTJxNPT
10#600 1 RTJxNPT
10#600 2 RTJxNPT
10#600 2 RTJxNPT
900
1/2"
3/4"
3/4"
1"
1"
1"
2"
2"
RTJ
RTJ
RTJ
RTJ
GRAYLOC®1GR5
GRAYLOC®1GR11
RTJ
RTJ
1/2" NPT
1/2" NPT
RTJ
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
RTJ
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#900 1/2 RTJxNPT
10#900 3/4 RTJxNPT
10#900 3/4 RTJxRTJ
10#900 1 RTJxNPT
10#900 1 GR5xNPT
10#900 1 GR11xNPT
10#900 2 RTJxNPT
10#900 2 RTJxNPT
1500
1/2"
3/4"
3/4"
1"
1"
1"
2"
2"
RTJ
RTJ
RTJ
RTJ
GRAYLOC®1GR5
GRAYLOC®1GR11
RTJ
RTJ
1/2" NPT
1/2" NPT
RTJ
1/2" NPT
1/2" NPT
1/2" NPT
1/2" NPT
RTJ
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#1500 1/2 RTJxNPT
10#1500 3/4 RTJxNPT
10#1500 3/4 RTJxRTJ
10#1500 1 RTJxNPT
10#1500 1 GR5xNPT
10#1500 1 GR11xNPT
10#1500 2 RTJxNPT
10#1500 2 RTJxRTJ
2500
1/2"
1"
2"
2"
RTJ
RTJ
RTJ
RTJ
1/2" NPT
1/2" NPT
1/2" NPT
RTJ
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT
10#2500 1/2 RTJxNPT
10#2500 1 RTJxNPT
10#2500 2 RTJxNPT
10#2500 2 RTJxNPT
