Chemical injection valve - short

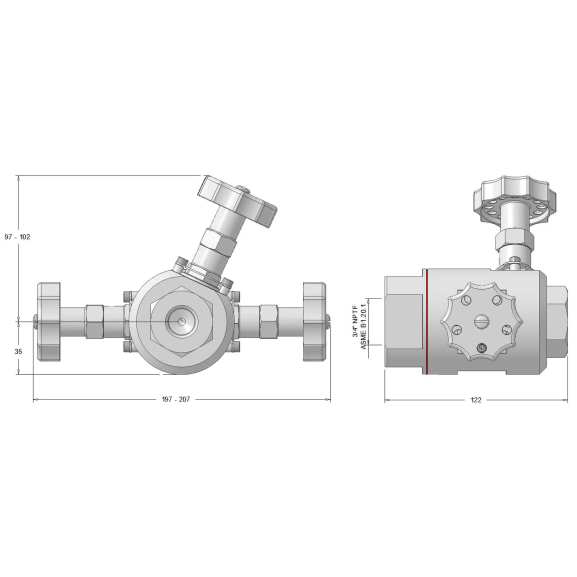

Specifications
| Item number: | Dim. | Inlet | Outlet | Ventilate | tMin. | tMax. | Max. Pressure | Material | Standard |
|---|---|---|---|---|---|---|---|---|---|
| 1000-531 | 3/4" | 3/4" NPTF | 1/2" NPTF | 1/2" NPTF | -20°C | 130°C | 10.000 Psi. | 254SMO/6Mo | ASME B1.20.1 |
About the product

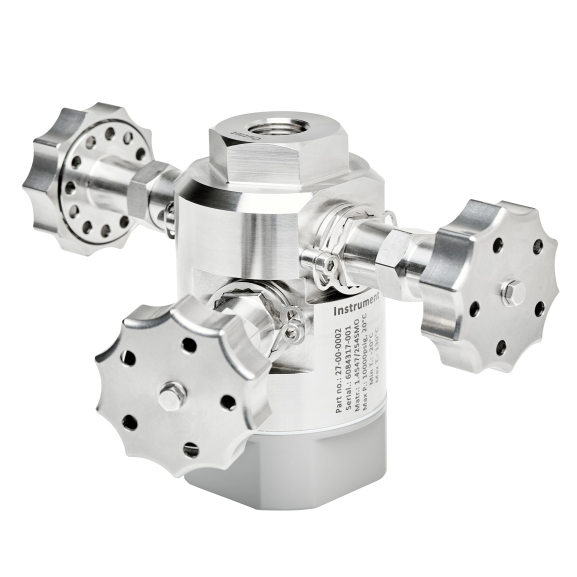

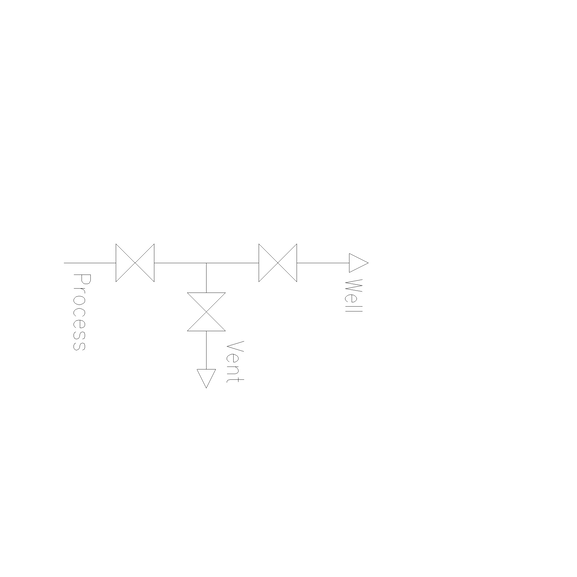

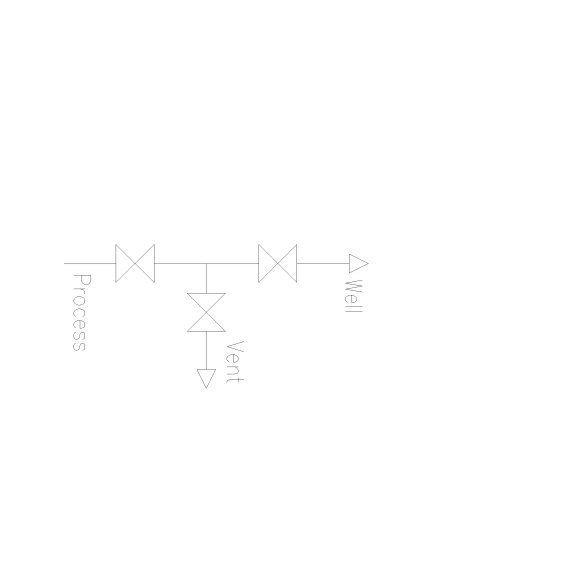

Chemical Injection Valve Manifold:This 3-way manifold for wellhead chemical injection is a manually operated double block and bleed needle valve.
Design pressure: 10.000Psi
(Anti-crevice-corrosion design) - ACCD

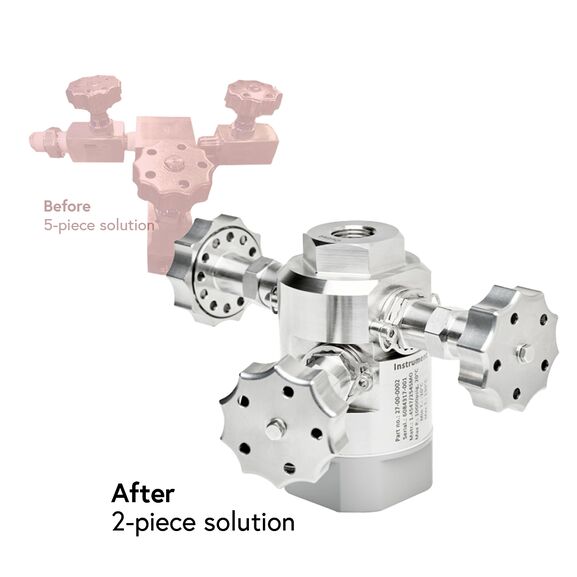

This valve manifold is protected against crevice corrosion by our patented anti-crevice-corrosion design specially developed for off shore environments with high chloride contents.
Anti-galvanic-corrosion-design - AGCD
The problem of galvanic corrosion due to electrical contact between the platform wellhead X-tree (usually made of carbon steel added with instrumentation lines in exotic materials) – will be eliminated by this valve manifold as the outlet flange is electrically isolated from the valve body by a unique design.
What is the manifold used for?

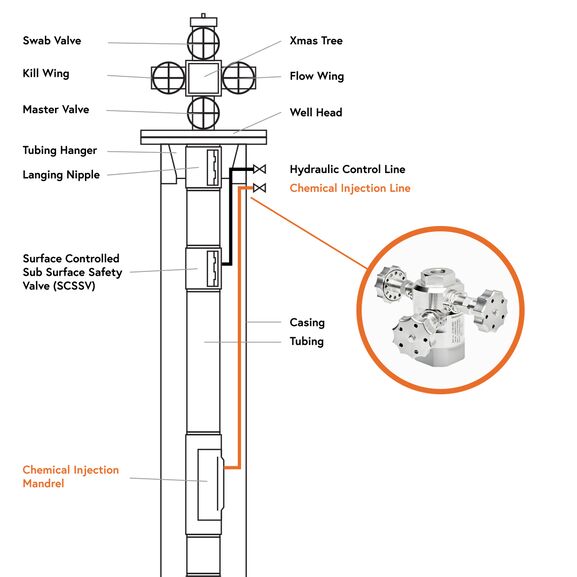

The manifold is mounted on the wellhead X-tree for chemical injection purpose. It works as a shut-off valve for fluids in fluid group 1 and 2, according to the pressure directive (2014/68/EU), in high pressure systems.
Valve ends:
The manifold comes as standard in 3 variations with different inlet and outlet ports. (Special inlets and outlets can be ordered upon request)
Material: 254SMo(6Mo) + carbon steel (outlet flange)
(Other materials upon request)
Approvals & Documentation:
API6A,
Hydrostatic test
PMI, painting report
3.1 material certificate
