Ball valve with turnable flanges (PN 64)
Ball valve with turnable flanges (PN 64)
Ball valve with turnable flanges (PN 64)
Ball valve with turnable flanges (PN 64)
Ball valve with turnable flanges (PN 64) Ball valve with turnable flanges (PN 64) Ball valve with turnable flanges (PN 64) Ball valve with turnable flanges (PN 64)

Ball valve with turnable flanges (PN 64)

Specifications

Item number: Code no. D Bar DN
2470+385 P6214DF160 105 64 15
2470+386 P6215DF160 130 64 20
2470+387 P6216DF160 140 64 25
2470+388 P6217DF100 155 64 32
2470+389 P6218DF100 170 64 40
2470+366 P6219DF64 180 64 50

About the product

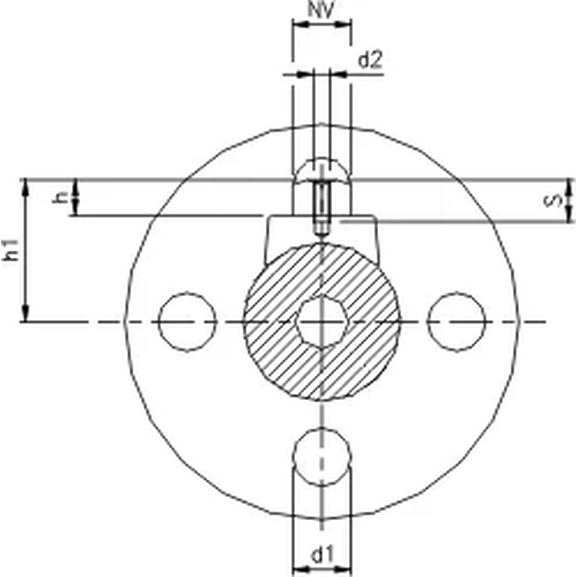

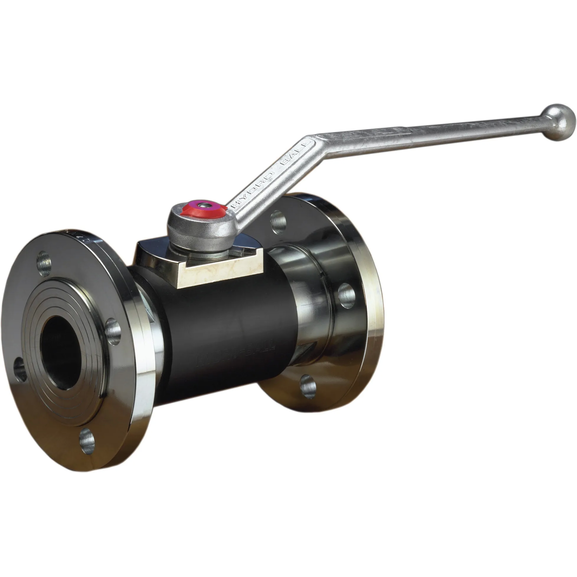

HYDRO-BALL® ball valve with turnable flanges with connection DF: Turnable flanges PN64 EN 558-1 and EN 1092-1.Measurements HB serie 62DF PN64
