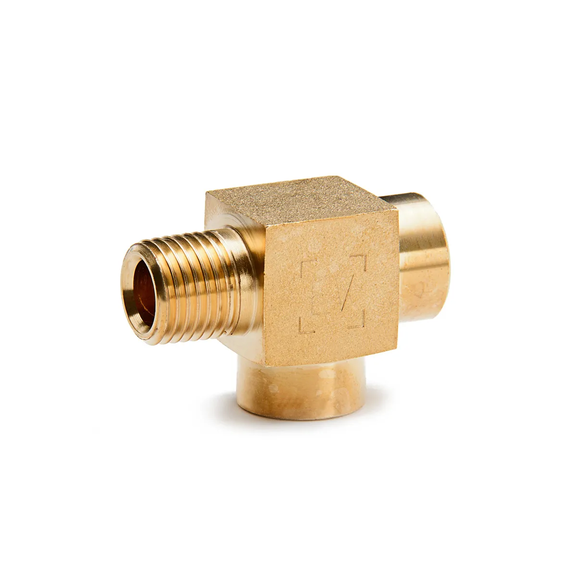

156B Tee with NPT thread
Specifications

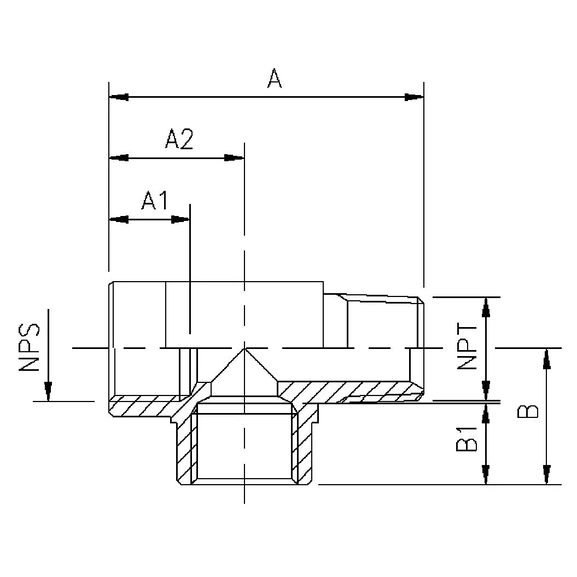

| Item number: | Thread NPT | A | A1 | A2 | B | B1 |
|---|---|---|---|---|---|---|
| 156B 1/8x1/8N | 1/8N | 31,0 | 7,0 | 14,0 | 14,0 | 7,0 |
| 156B 1/4x1/4N** | 1/4N | 45,0 | 9,5 | 22,5 | 22,5 | 9,5 |
| 156B 3/8x3/8N** | 3/8N | 45,0 | 10,5 | 21,0 | 21,0 | 10,5 |
About the product
Tee with female NPT thread in one horizontal + vertical end and male NPT pipe thread at one horizontal end.** On request.
