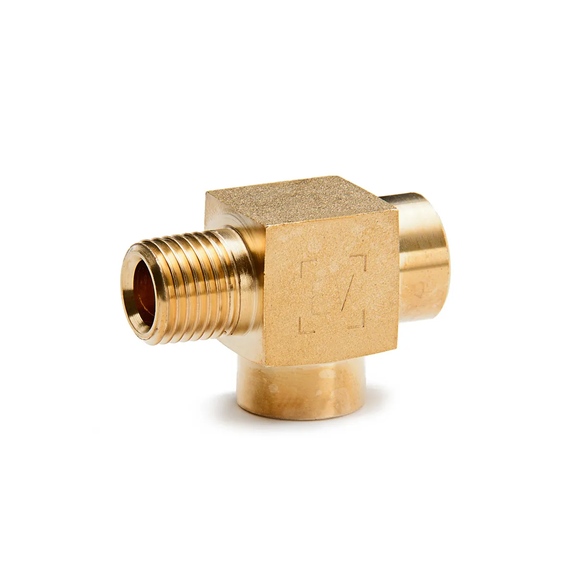

156B Tee
Specifications

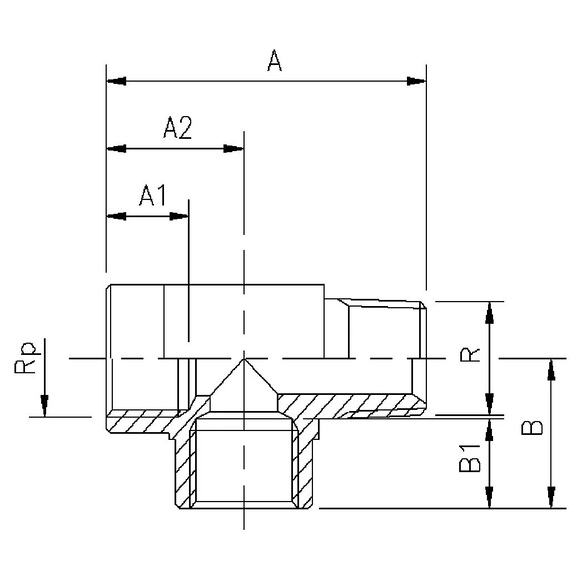

| Item number: | VVS code xxx | A | A1 | Thread R | A2 | Thread Rp | B | B1 |
|---|---|---|---|---|---|---|---|---|
| 156B 1/8x1/8 | 701 | 31,0 | 7,0 | 1/8 | 12,0 | 1/8 | 12,0 | 7,0 |
| 156B 1/4x1/4 | 702 | 38,0 | 10,0 | 1/4 | 16,0 | 1/4 | 16,0 | 10,0 |
| 156B 3/8x3/8 | 703 | 42,0 | 11,0 | 3/8 | 19,0 | 3/8 | 19,0 | 11,0 |
