120B Reducer with NPT thread
Specifications

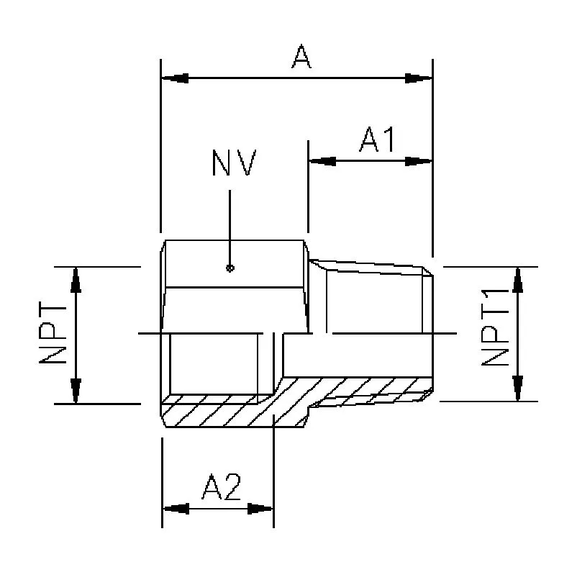

| Item number: | Thread NPT1 | Thread NPT | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 120B 1/4x1/4N** | 1/4N | 1/4 | 23,0 | 10,0 | 10,0 | 16 |
| 120B 3/8x1/4N | 1/4N | 3/8 | 24,0 | 10,0 | 10,5 | 20 |
| 120B 1/4x1/8N** | 1/8N | 1/4 | 23,0 | 10,0 | 10,0 | 16 |
| 120B 1/8x1/8N** | 1/8N | 1/8 | 21,0 | 10,0 | 8,0 | 14 |
| 120B 3/8x3/8N | 3/8N | 3/8 | 27,0 | 13.0 | 10,5 | 20 |
| 120B 1/2x3/8N | 3/8N | 1/2 | 29,0 | 13.0 | 13,0 | 25 |
About the product

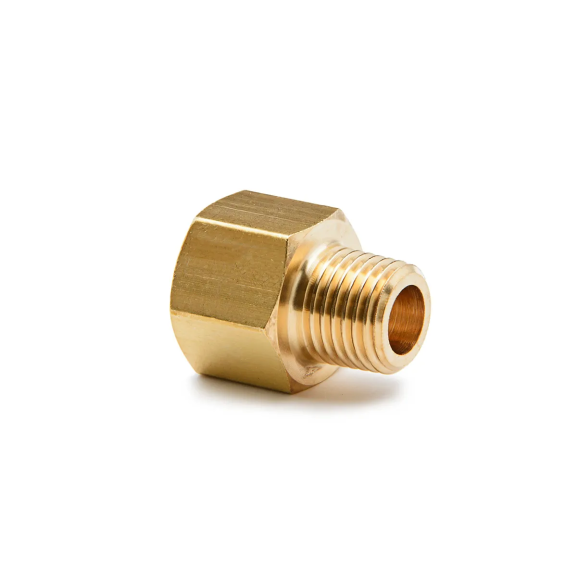

Reducer with female NPT thread and male NPT thread.** On request.
