120B Reducer
Specifications

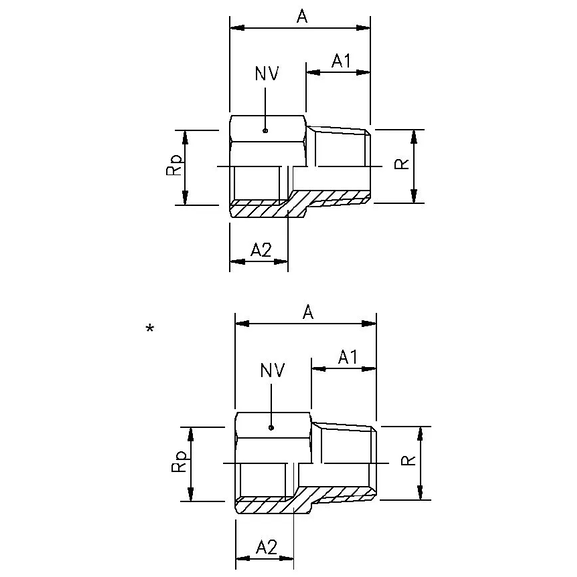

| Item number: | A | A1 | HEX | Thread R | A2 | Thread Rp |
|---|---|---|---|---|---|---|
| 120B 1/8x1/8 | 21,0 | 10,0 | 13 | 1/8 | 8,0 | 1/8 |
| 120B 1/8x1/4 | 22,0 | 11,0 | 13 | 1/4 | 8,0 | 1/8 |
| 120B 1/4x1/8 | 23,0 | 10,0 | 15 | 1/8 | 10,0 | 1/4 |
| 120B 1/4x1/4 | 24,0 | 11,0 | 15 | 1/4 | 10,0 | 1/4* |
| 120B 3/8x1/4 | 25,0 | 11,0 | 19 | 1/4 | 11,0 | 3/8 |
| 120B 1/2x1/4 | 26,0 | 11,0 | 24 | 1/4 | 12,0 | 1/2 |
| 120B 1/2x3/8 | 28,0 | 13,0 | 24 | 3/8 | 12,0 | 1/2 |
| 120B 3/4x1/2 | 34,0 | 16,0 | 30 | 1/2 | 14,0 | 3/4 |
About the product

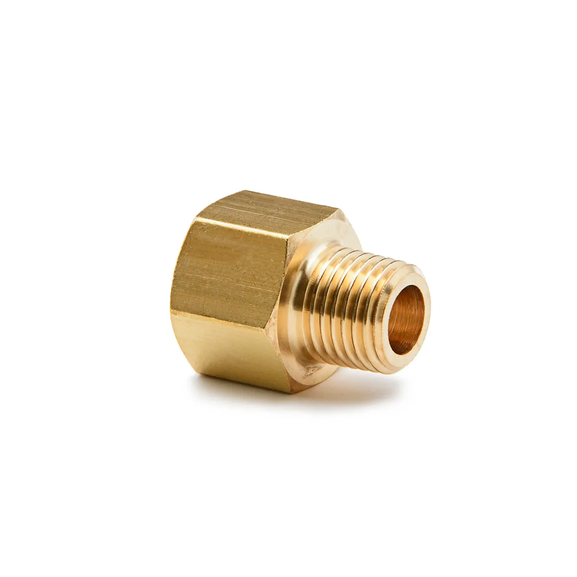

Reducer with female parallel pipe thread and male pipe thread.*1/4 thread with chamfer.
