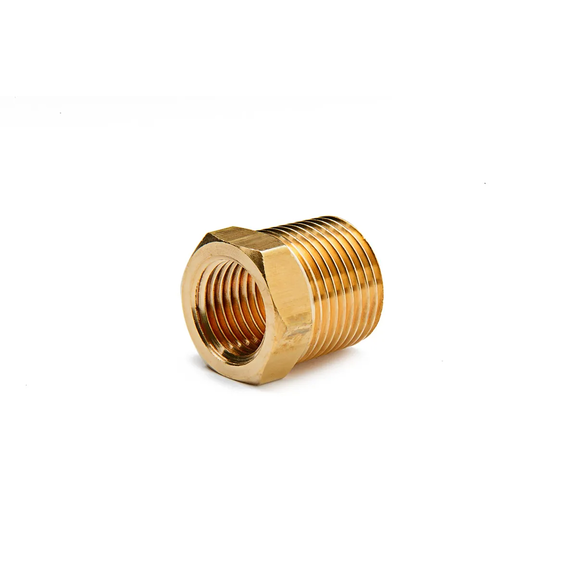

110B Reducer with NPT thread
Specifications

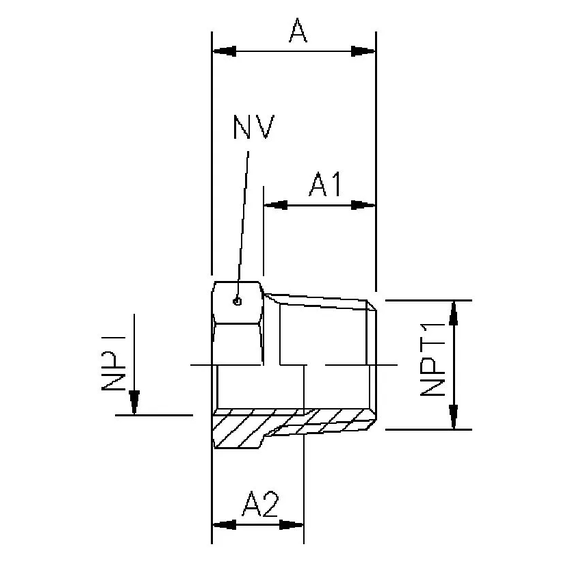

| Item number: | Thread NPT1 | Thread NPT | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 110B 1/4x1/2N** | 1/2N | 1/4 | 22,5 | 16,0 | 6,5 | 22 |
| 110B 1/8x1/2N** | 1/2N | 1/8 | 22,5 | 16,0 | 6,0 | 22 |
| 110B 3/8x1/2N** | 1/2N | 3/8 | 22,5 | 16,0 | 6,5 | 22 |
| 110B 1/8x1/4N | 1/4N | 1/8 | 16,0 | 11,0 | 5,0 | 14 |
| 110B 3/8x3/4N | 3/4N | 3/8 | 23,5 | 16,5 | 6,5 | 27 |
| 110B 1/2x3/4N | 3/4N | 1/2 | 23,5 | 16,5 | 7,0 | 27 |
About the product
Reducer with NPT thread.** On request.
