Sensor pockets for thermometer
Specifications

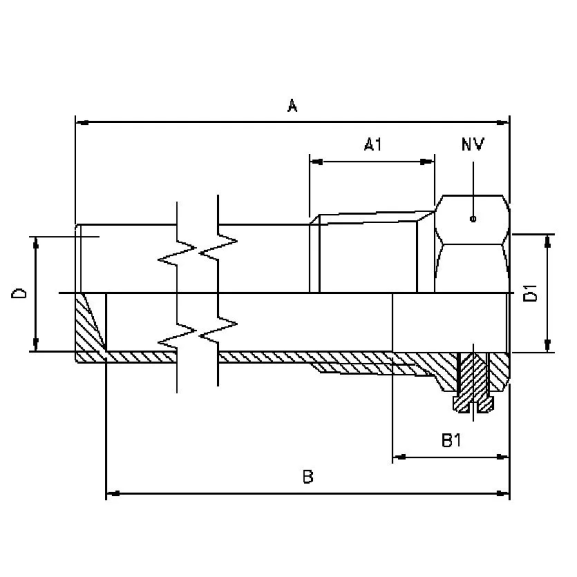

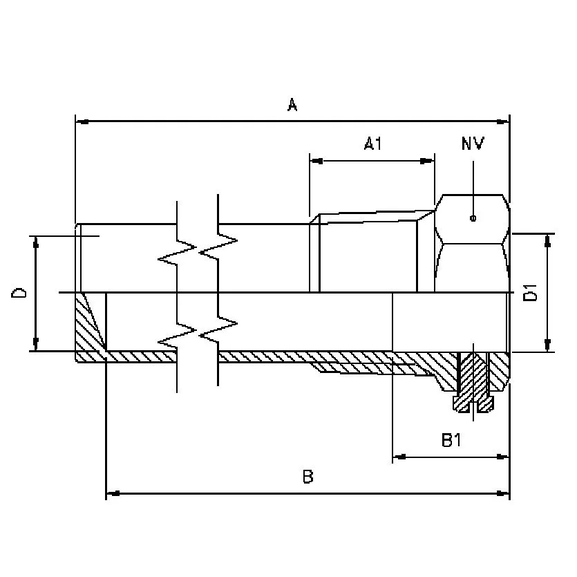

| Item number: | Thread R | Dia D. | Dia. D1 | Code no. | A | A1 | B | B1 | HEX |
|---|---|---|---|---|---|---|---|---|---|
| 48 0678 514 | 1/2 | 15,0 | 15,3 | 48 0678 514 | 55 | 16,0 | 50 | 15,0 | 22 |
| 48 0678 534 | 1/2 | 15,0 | 15,3 | 48 0678 534 | 105 | 16,0 | 100 | 15,0 | 22 |
| 48 0678 554 | 1/2 | 15,0 | 15,3 | 48 0678 554 | 130 | 16,0 | 125 | 15,0 | 22 |
| 48 0678 574 | 1/2 | 15,0 | 15,3 | 48 0678 574 | 150 | 16,0 | 145 | 15,0 | 22 |
About the product

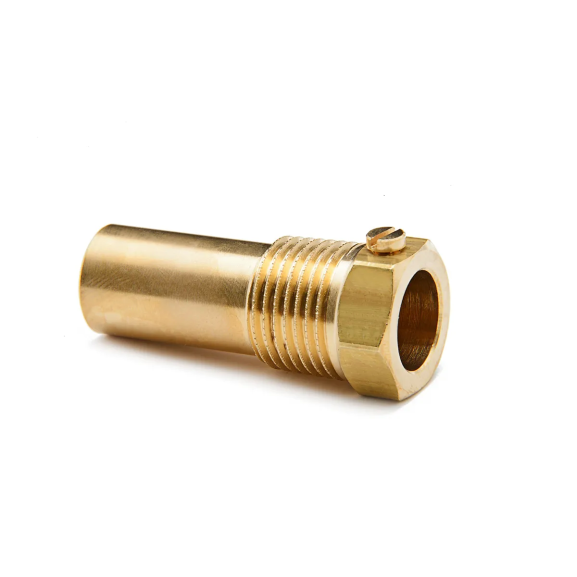

Pocket for pipe thread in dezincificationfree brass.
Delivered with M4 screw for attachment of thermometer.
