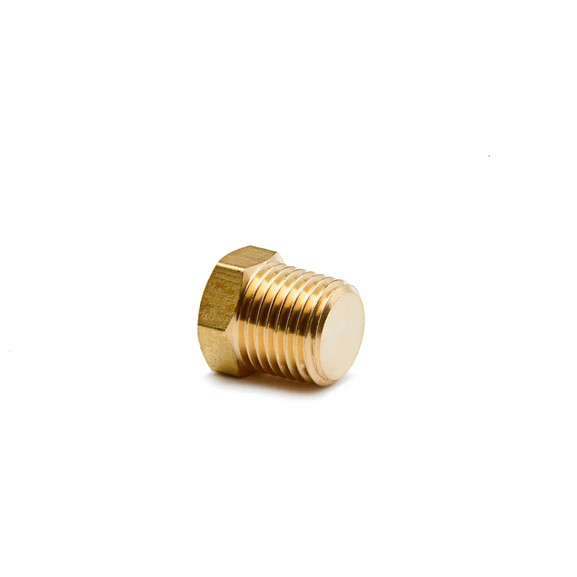

109B Plug with NPT thread
Specifications

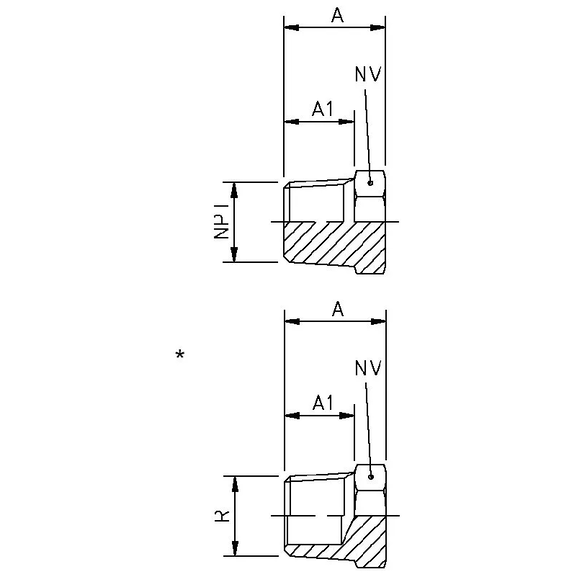

| Item number: | A | A1 | HEX | Thread NPT |
|---|---|---|---|---|
| 109B 1/8N | 15,0 | 10,0 | 11 | 1/8N |
| 109B 1/4N | 16,0 | 11,0 | 14 | 1/4N |
| 109B 3/8N | 19,0 | 13.0 | 17 | 3/8N |
| 109B *1/2N | 22,5 | 16,0 | 21 | *1/2N |
About the product
Plug with NPT thread.1/2 is hollow underneath the thread.
