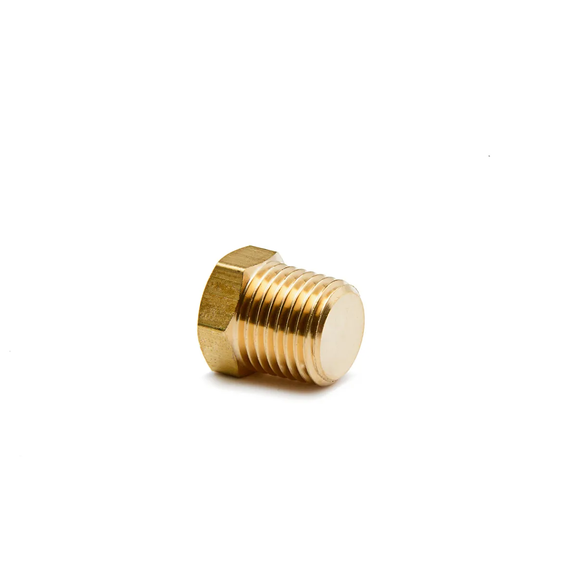

109B Plug
Specifications

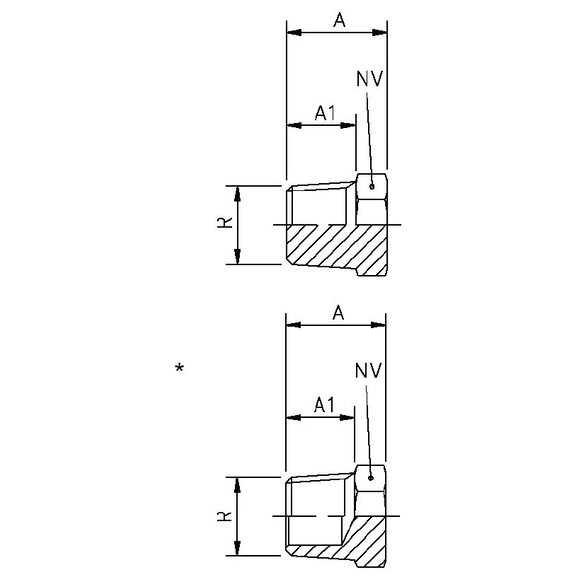

| Item number: | A | A1 | HEX | Thread R |
|---|---|---|---|---|
| 109B 1/8 | 15,0 | 10,0 | 11 | 1/8 |
| 109B *1/2 | 22,5 | 16,0 | 21 | *1/2 |
| 109B *3/4 | 22,8 | 16,3 | 27 | *3/4 |
| 109B 1/4 | 16,0 | 11,0 | 14 | 1/4 |
| 109B 3/8 | 19,0 | 13,0 | 17 | 3/8 |
About the product
Plug with pipe thread.* 1/2 og 3/4 are hollow underneath the thread.
