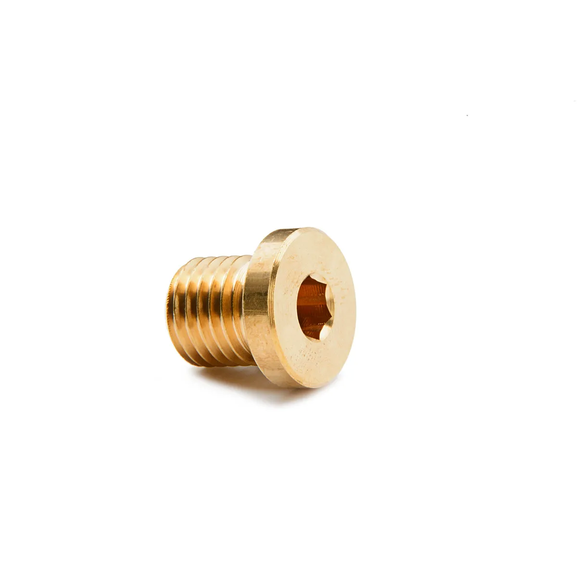

105M Plug
Specifications

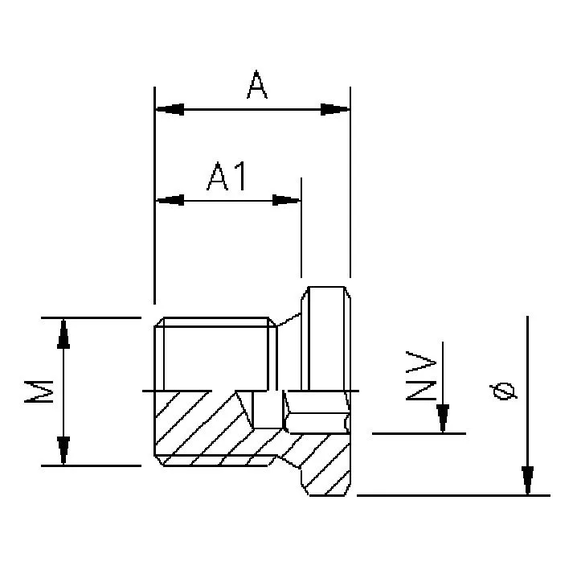

| Item number: | Metric thread M | Dia Ø | A | A1 | HEX |
|---|---|---|---|---|---|
| 105M 10x1 | 10x1 | 14,0 | 12,0 | 8,0 | 5 |
| 105M 12x1,5 | 12x1,5 | 17,0 | 16,0 | 10,0 | 6 |
| 105M 14x1,5 | 14x1,5 | 19,0 | 16,0 | 12,0 | 6 |
| 105M 22x1,5 | 22x1,5 | 27,0 | 18,0 | 12,0 | 10 |
| 105M 14x1** | 14x1 | 19,0 | 16,0 | 12,0 | 6 |
About the product
Plug with metric thread.The plug has a male umbraco and is used together with the gasket.
**On request.
