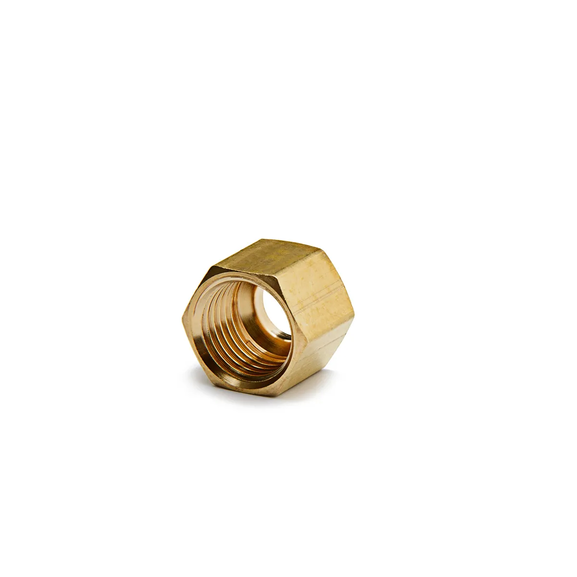

194B Nut for sleeve 60F/60N
Specifications

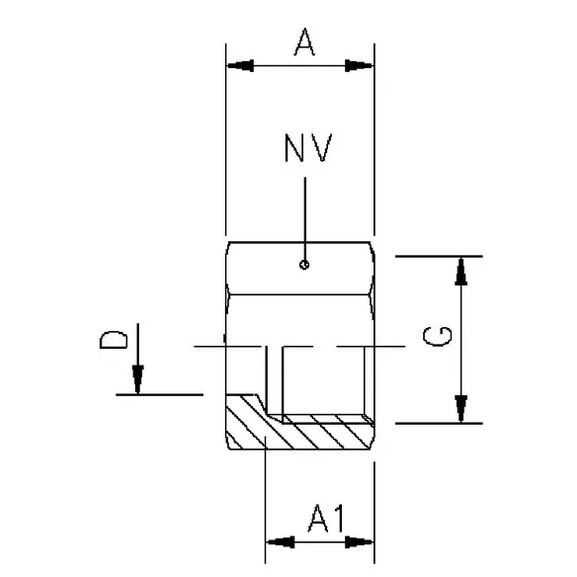

| Item number: | Tube O.D. D mm/inch. | A | A1 | HEX | Thread G |
|---|---|---|---|---|---|
| 194B 4x1/8 | 4 | 11,0 | 8,5 | 12 | 1/8 |
| 194B 5x1/8 | 5 (3/16) | 11,0 | 8,5 | 12 | 1/8 |
| 194B 6x1/8 | 6 (1/4) | 11,0 | 8,5 | 12 | 1/8 |
| 194B 5x1/4** | 5 (3/16) | 12,5 | 9,5 | 15 | 1/4 |
| 194B 6x1/4 | 6 (1/4) | 12,5 | 9,5 | 15 | 1/4 |
| 194B 8x1/4 | 8 (5/16) | 12,5 | 9,0 | 15 | 1/4 |
| 194B 8x3/8 | 8 (5/16) | 13,0 | 10,0 | 19 | 3/8 |
| 194B 10x3/8 | 10 (3/8) | 13,0 | 10,0 | 19 | 3/8 |
| 194B 12x3/8** | 12 (1/2) | 13,0 | 10,0 | 19 | 3/8 |
| 194B 14x1/2** | 14 | 14,0 | 11,0 | 24 | 1/2 |
| 194B 8x1/2** | 8 (5/16) | 14,0 | 11,0 | 24 | 1/2 |
| 194B 10x1/2** | 10 (3/8) | 14,0 | 11,0 | 24 | 1/2 |
| 194B 12x1/2** | 12 (1/2) | 14,0 | 11,0 | 24 | 1/2 |
| 194B 15x1/2** | 15 | 14,0 | 11,0 | 24 | 1/2 |
| 194B 16x1/2** | 16 (5/8) | 14,0 | 11,0 | 24 | 1/2 |
| 194B 20x3/4** | 20 | 17,0 | 14,0 | 32 | 3/4 |
| 194B 22x3/4** | 22 | 17,0 | 14,0 | 32 | 3/4 |
| 194B 16x3/4** | 16 (5/8) | 17,0 | 14,0 | 32 | 3/4 |
| 194B 20x1** | 20 | 19,0 | 15,0 | 38 | 1 |
| 194B 22x1** | 22 | 18,0 | 15,0 | 38 | 1 |
| 194B 25x1** | 25 | 18,0 | 15,0 | 38 | 1 |
| 194B 30x11/4** | 30 | 23,0 | 18,0 | 47 | 1 1/4 |
| 194B 38x1 | 38 | 23,0 | 18,0 | 55 | 1 1/2 |
About the product
Nut for sleeve 60F/60N with parallel pipe thread** On request.
