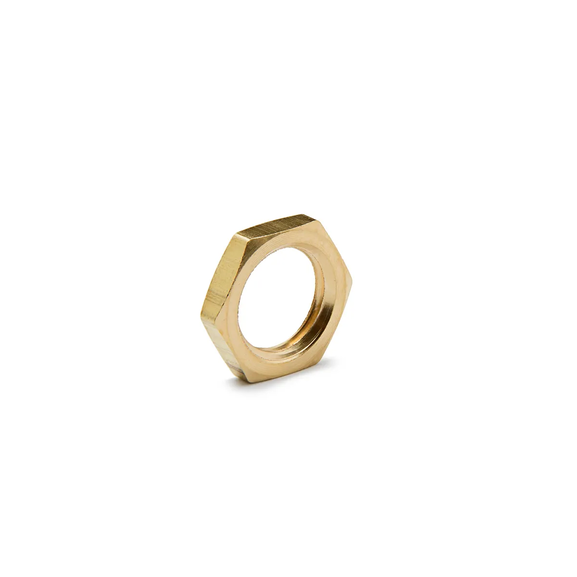

1121B Lock nut
Specifications

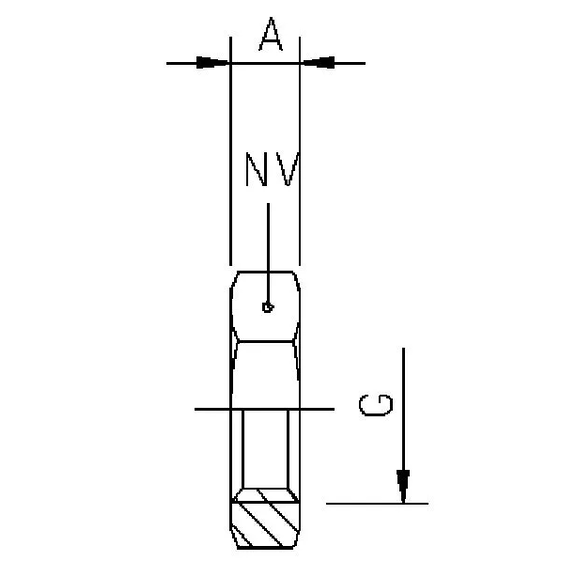

| Item number: | VVS code xxx | A | HEX | Thread G |
|---|---|---|---|---|
| 1121B 1/8x3,5 | 601 | 3,5 | 13 | 1/8 |
| 1121B 1/8x5 | 701 | 5 | 13 | 1/8 |
| 1121B 1/4x3,5 | 602 | 3,5 | 17 | 1/4 |
| 1121B 1/4x5 | 702 | 5 | 17 | 1/4 |
| 1121B 3/8x3,5 | 603 | 3,5 | 21 | 3/8 |
| 1121B 3/8x6 | 703 | 6 | 21 | 3/8 |
| 1121B 1/2x3,5 | 604 | 3,5 | 24 | 1/2 |
| 1121B 1/2x6 | 704 | 6 | 24 | 1/2 |
| 1121B 3/4x5 | 606 | 5 | 30 | 3/4 |
| 1121B 3/4x8 ** | 706 | 8 | 30 | 3/4 |
| 1121B 1x6 | 608 | 6 | 38 | 1 |
| 1121B 1x8 | 708 | 8 | 38 | 1 |
| 1121B 11/4x6** | 610 | 6 | 47 | 1 1/4 |
| 1121B 11/4x10 ** | 710 | 10 | 47 | 1 1/4 |
| 1121B 11/2x6 | 611 | 6 | 55 | 1 1/2 |
| 1121B 11/2x10 | 711 | 10 | 55 | 1 1/2 |
| 1121B 2x10 | 712 | 10 | 70 | 2 |
About the product
Lock nut with parallel pipe thread.** On request.
