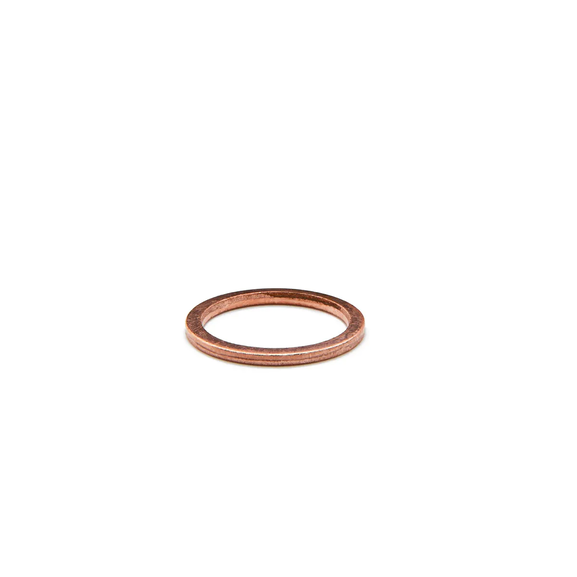

1022SK Brass washer
Specifications

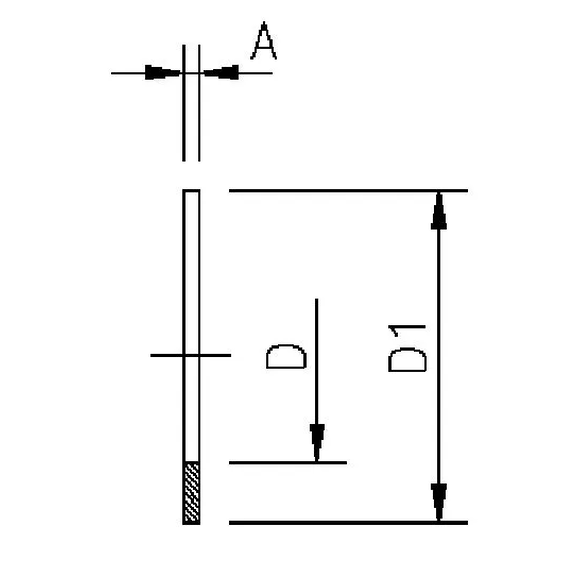

| Item number: | Fits thread G | Dia D. | Dia. D1 | A |
|---|---|---|---|---|
| 1022SK 11/2** | 1 1/2 | 48,5 | 60 | 1,0 |
| 1022SK 11/4** | 1 1/4 | 42,5 | 55 | 1,0 |
| 1022SK 1/2 ** | 1/2 | 21,5 | 34 | 1,0 |
| 1022SK 1/4** | 1/4 | 13,5 | 20,0 | 1,0 |
| 1022SK 3/4** | 3/4 | 27 | 42 | 1,0 |
| 1022SK 3/8 | 3/8 | 17 | 27,0 | 1,0 |
| 1022SK 1/8** | 1/8 | 10 | 17,0 | 1,0 |
| 1022SK 1** | 1 | 34 | 48 | 1,0 |
| 1022SK 2** | 2 | 60 | 73 | 1,0 |
About the product
The brass washer matches parallel pipe thread.** On request.
