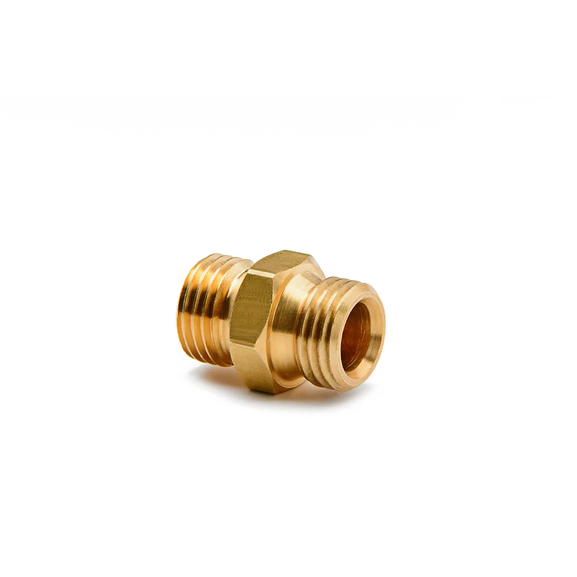

282M Nipple
Specifications

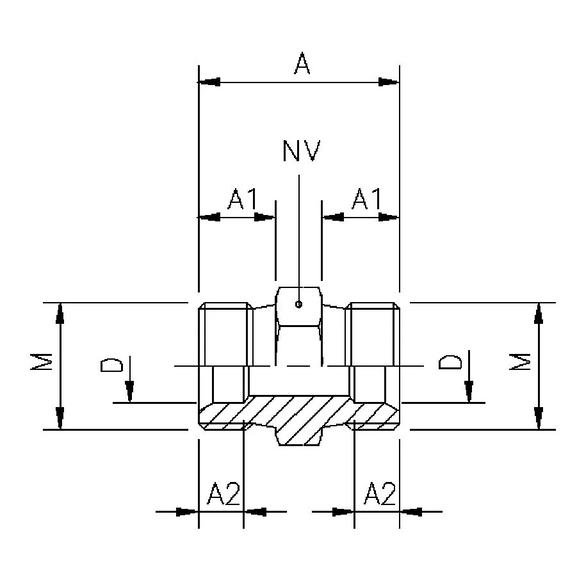

| Item number: | A | A1 | HEX | A2 | Tube O.D. D mm | Metric thread M |
|---|---|---|---|---|---|---|
| 282M 10x1** | 21,0 | 8,0 | 12 | 5,0 | 5 | 10x1 |
| 282M 12x1,5** | 22,0 | 8,5 | 14 | 6,0 | 6 | 12x1,5 |
| 282M 14x1.5 | 22,0 | 8,5 | 16 | 5,0 | 8 | 14x1,5 |
| 282M 16x1.5 | 25,5 | 10,0 | 18 | 6,5 | 10 | 16x1,5 |
| 282M 18x1.5** | 27,0 | 10,5 | 20 | 7,0 | 12 | 18x1,5 |
| 282M 22x1,5** | 30,5 | 12,0 | 24 | 8,0 | 14 | 22x1,5 |
