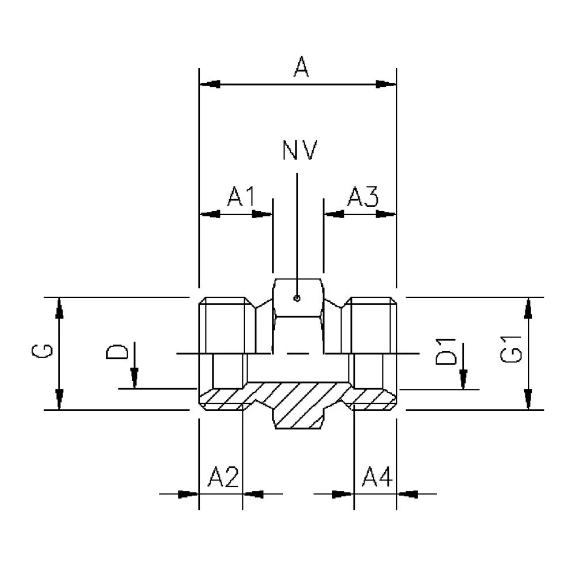

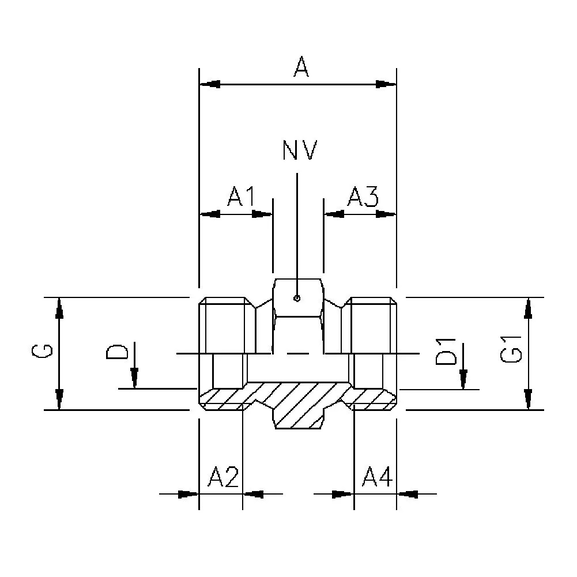

282B Nipple
Specifications
| Item number: | A | A1 | A2 | Tube O.D. D mm | Tube O.D. D1 mm | A3 | A4 | Thread G | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 282B 1/8x1/8 | 21,0 | 8,0 | 5,0 | 5 | 5 | 8,0 | 5,0 | 1/8 | ||
| 282B 1/8x1/4 | 720 | 21,5 | 8,0 | 15 | 5,0 | 5 | 8 | 8,5 | 5,0 | 1/8 |
| 282B 1/4x1/4 | 22,0 | 8,5 | 5,0 | 8 | 8 | 8,5 | 5,0 | 1/4 | ||
| 282B 1/4x1/2 | 725 | 27,0 | 8,5 | 23 | 5,0 | 8 | 15 | 12,0 | 8,0 | 1/4 |
| 282B 1/4x3/8 | 722 | 24,0 | 8,5 | 19 | 5,0 | 8 | 10 | 10,0 | 6,5 | 1/4 |
| 282B 3/8x1/2 | 726 | 28,5 | 10,0 | 23 | 6,5 | 10 | 15 | 12,0 | 7,0 | 3/8 |
| 282B 3/8x3/8 | 25,5 | 10,0 | 6,5 | 10 | 10 | 10,0 | 6,5 | 3/8 | ||
| 282B 11/4x11/4** | 50,0 | 20,0 | 14,0 | 32 | 32 | 20,0 | 14,0 | 11/4 | ||
| 282B 1/2x1/2 | 30,5 | 12,0 | 7,0 | 15 | 15 | 12,0 | 7,0 | 1/2 | ||
| 282B 1/2x3/4 | 733 | 32,0 | 12,0 | 30 | 7,0 | 15 | 20 | 13,0 | 9,0 | 1/2 |
| 282B 3/4x3/4 | 33,0 | 13,0 | 9,0 | 20 | 20 | 13,0 | 9,0 | 3/4 | ||
| 282B 3/4x1 | 743 | 36,0 | 13,0 | 36 | 9,0 | 20 | 25 | 15,0 | 11,0 | 3/4 |
| 282B 1x11/4** | 45,0 | 15,0 | 11,0 | 25 | 32 | 20,0 | 14,0 | 1 |
About the product

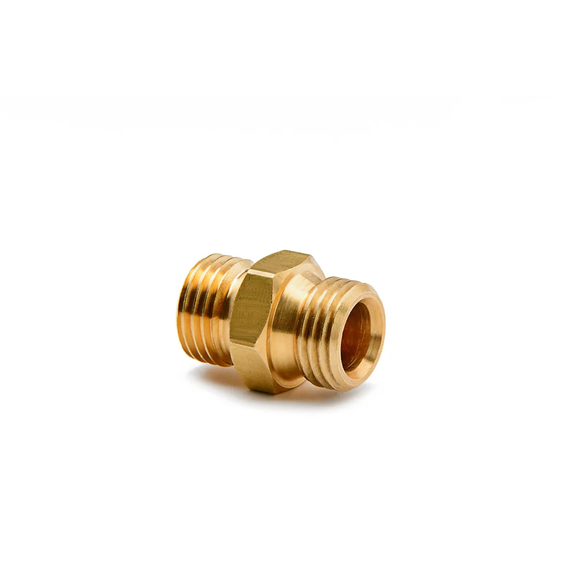

Nipple with parallel pipe thread in both ends** On request.
