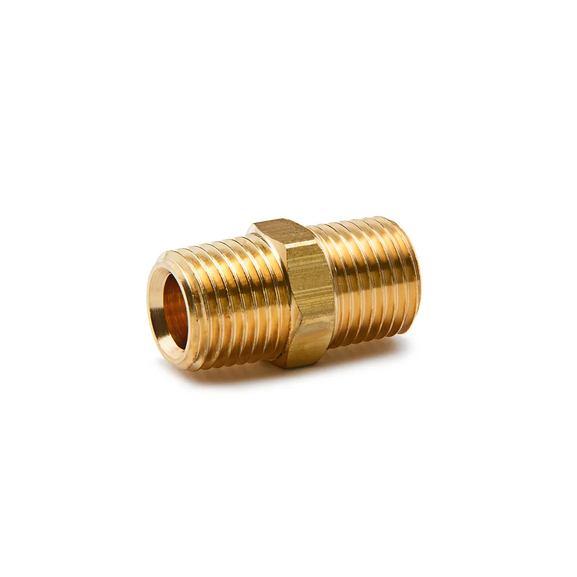

206B Nipple with pipe thread and NPT thread
Specifications

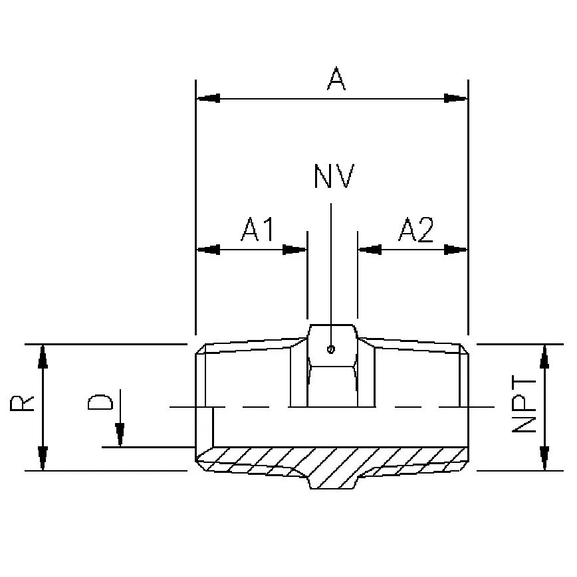

| Item number: | Tube O.D. D mm | Thread NPT | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 206B 1/8Wx1/8N** | 6 | 1/8N | 25,0 | 10,0 | 10,0 | 11 |
| 206B 1/4Wx1/4N | 8 | 1/4N | 27,0 | 11,0 | 11,0 | 14 |
| 206B 3/8Wx3/8N** | 11 | 3/8N | 32,0 | 13.0 | 13,0 | 18 |
About the product
Nipple with pipe thread in one end (with female sleeve) and NPT thread in the other end.** On request.
