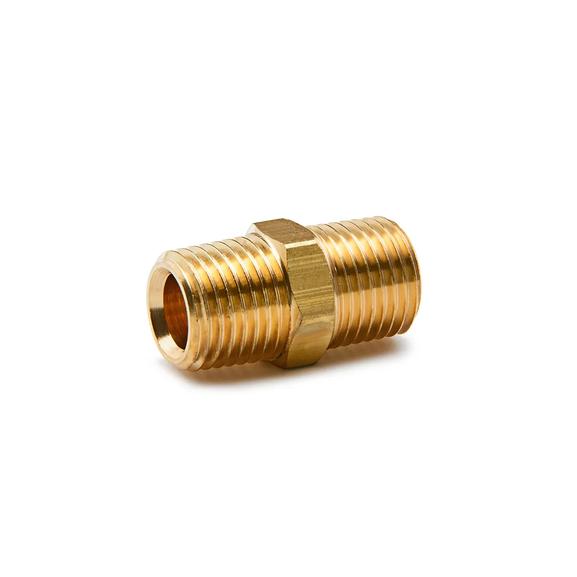

206B Nipple with NPT thread with female chamfer and pipe thread
Specifications

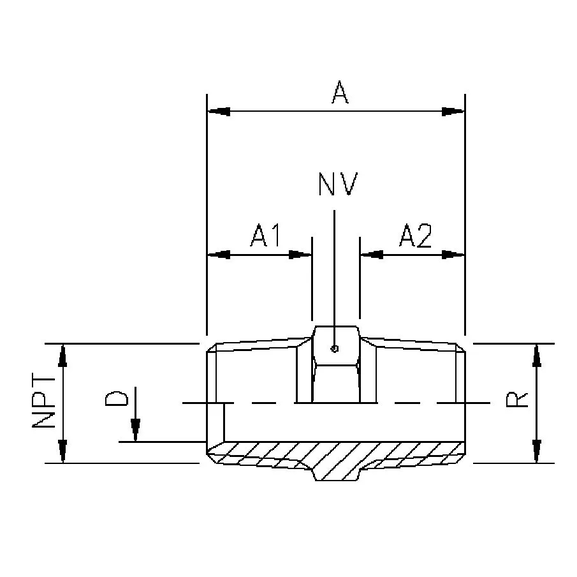

| Item number: | Tube O.D. D mm | Thread NPT | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 206B 1/8Nx1/4W | 6 | 1/8N | 26,0 | 10,0 | 11,0 | 14 |
| 206B 1/4Nx1/8W | 6 | 1/4N | 26,0 | 11,0 | 10,0 | 14 |
| 206B 3/8Nx3/8W | 11 | 3/8N | 32,0 | 13.0 | 13,0 | 18 |
