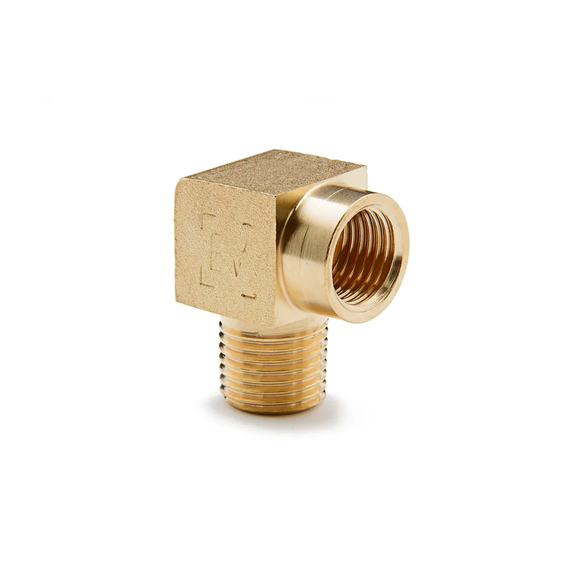

116B Elbow
Specifications

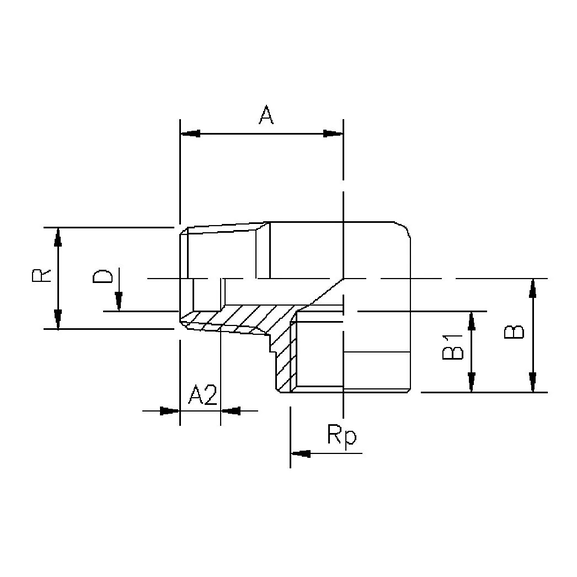

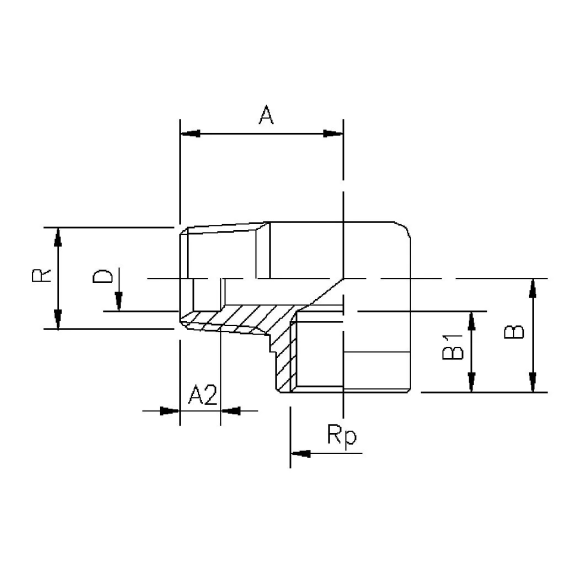

| Item number: | Tube O.D. D mm | Thread Rp | Thread R | VVS code xxx | A | A2 | B | B1 |
|---|---|---|---|---|---|---|---|---|
| 116B 1/8x1/8 | 5 | 1/8 | 1/8 | 701 | 19,3 | 5,0 | 13,0 | 10,0 |
| 116B 1/4x1/8 | 5 | 1/4 | 1/8 | 720 | 22,0 | 5,0 | 15,5 | 10,0 |
| 116B 1/4x1/4 | 8 | 1/4 | 1/4 | 702 | 21,0 | 5,0 | 14,5 | 10,0 |
| 116B 3/8x3/8 | 10 | 3/8 | 3/8 | 703 | 24,0 | 6,5 | 16,0 | 11,0 |
