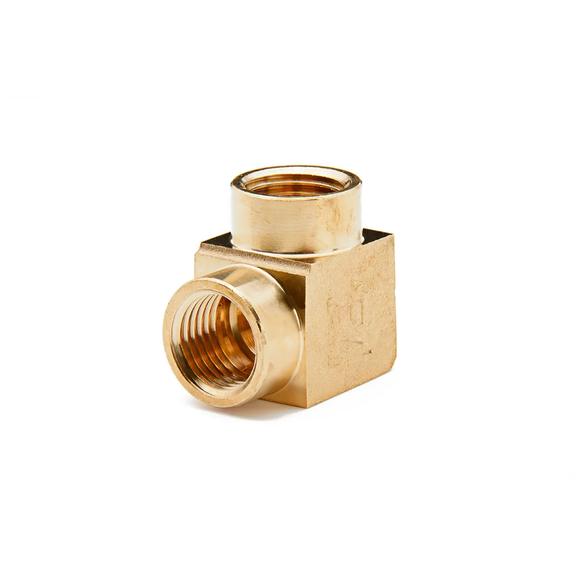

100B Female elbow
Specifications

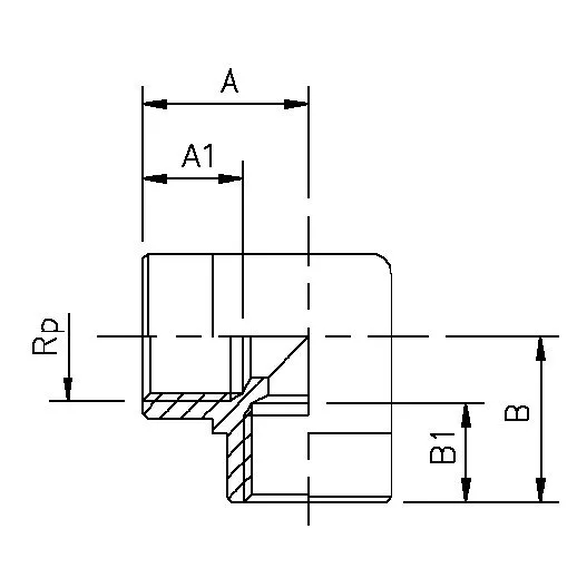

| Item number: | Thread Rp | VVS code xxx | A | A1 | B | B1 |
|---|---|---|---|---|---|---|
| 100B 1/8 | 1/8 | 701 | 12,0 | 7,0 | 12,0 | 7,0 |
| 100B 1/4 | 1/4 | 702 | 16,5 | 10,0 | 16,5 | 10,0 |
| 100B 3/8 | 3/8 | 703 | 19,0 | 10,0 | 19,0 | 10,0 |
| 100B 1/2 | 1/2 | 704 | 28,0 | 13.0 | 28,0 | 13,0 |
