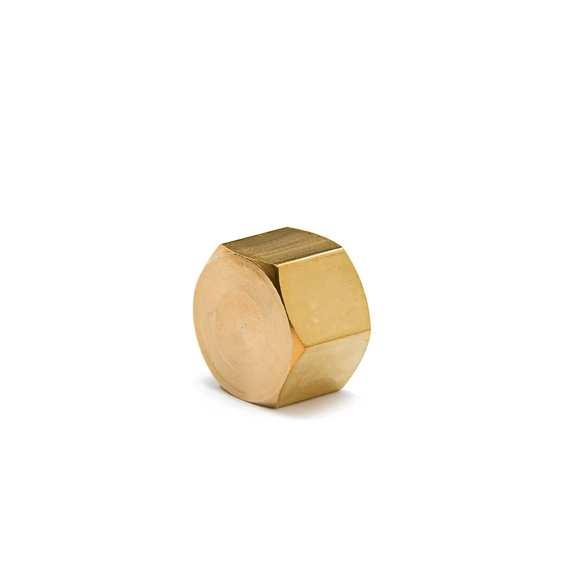

398B End cap
Specifications

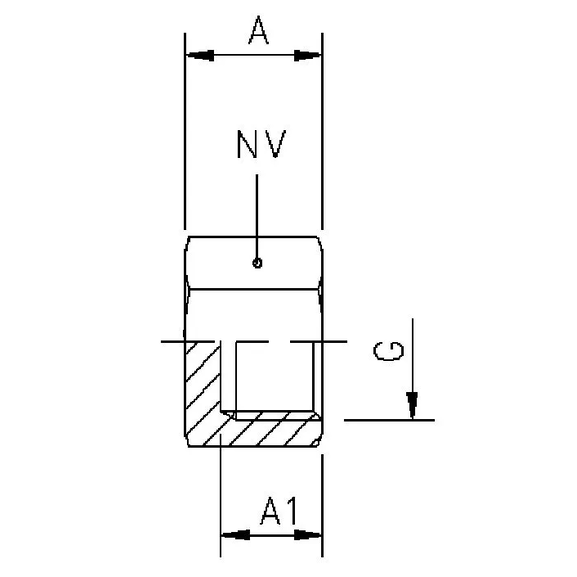

| Item number: | Thread G | VVS code xxx | A | A1 | HEX |
|---|---|---|---|---|---|
| 398B 1/8 | 1/8 | 701 | 10,0 | 8,0 | 12 |
| 398B 1/4 | 1/4 | 702 | 11,5 | 8,5 | 15 |
| 398B 3/8 | 3/8 | 703 | 13,0 | 10,0 | 19 |
| 398B 1/2 | 1/2 | 704 | 14,0 | 11,0 | 24 |
