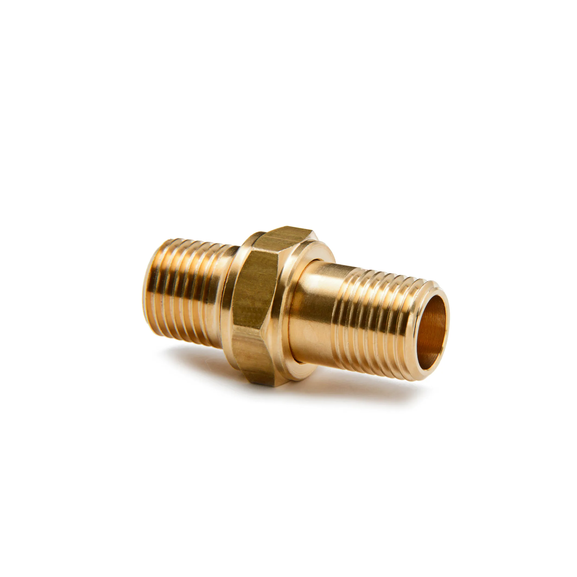

900B Connector
Specifications
| Item number: | Thread R | A | A1 | A2 | HEX | HEX1 |
|---|---|---|---|---|---|---|
| 900B 1/8 | 1/8 | 32,5 | 14,0 | 10,0 | 15 | 5 |
| 900B 1/4 | 1/4 | 37,5 | 17,0 | 11,0 | 18 | 8 |
| 900B 3/8 | 3/8 | 42,0 | 19,0 | 13,0 | 24 | 10 |
| 900B 1/2 | 1/2 | 49,5 | 22,0 | 16,0 | 28 | 12 |
About the product
Connector with pipethread.Delivered with O-ring NBR shore A. Temperature from -25° to +80° C.
Should not be used in systems with vacuum.
