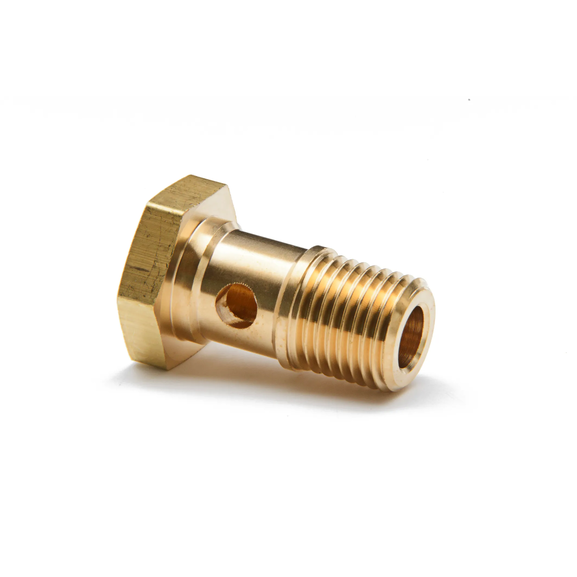

7623 Banjo plug with metric pipe thread
Specifications

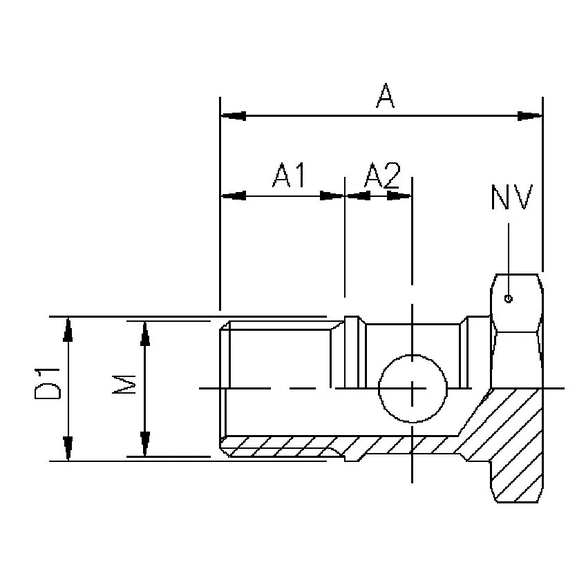

| Item number: | Metric thread M | Bolt dia. D1 mm | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 7623 10x1 | 10x1 | 10 | 24,0 | 9,0 | 4,0 | 14 |
| 7623 14x1,5 | 14x1,5 | 14 | 31,0 | 12,0 | 6,5 | 19 |
| 7623 16x1,5 | 16x1,5 | 16 | 33,0 | 12,0 | 7,0 | 22 |
| 7623 18x1.5 | 18x1,5 | 18 | 37,0 | 13.0 | 9,0 | 24 |
| 7623 8x1 | 8x1 | 8 | 21,0 | 10,0 | 2,5 | 12 |
About the product
Banjo plug with metric pipe thread.** On request.
