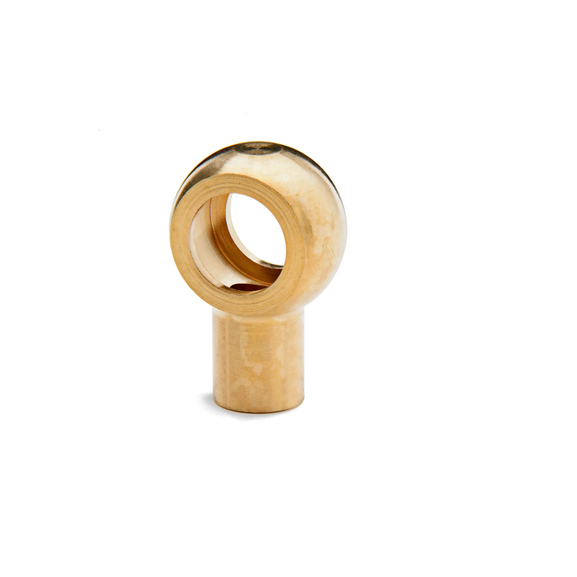

7622 Banjo connector
Specifications

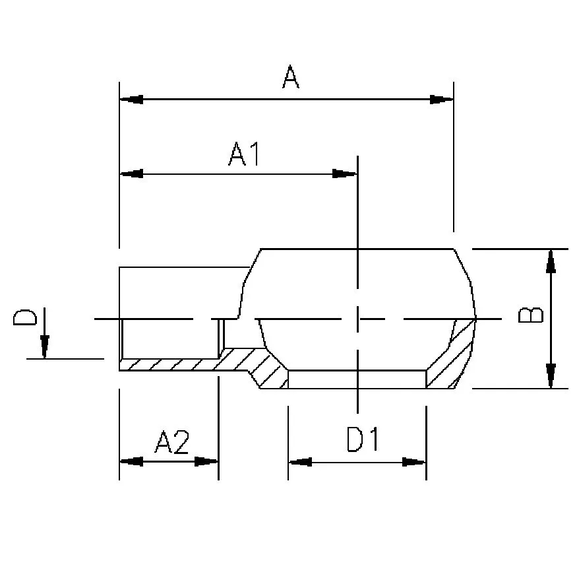

| Item number: | A | A1 | A2 | B | Tube O.D. D mm | Bolt dia. D1 mm |
|---|---|---|---|---|---|---|
| 7622 4xØ8 | 23,0 | 16,5 | 8,0 | 8,0 | 4 | Ø8 |
| 7622 5xØ8** | 23,0 | 16,0 | 8,0 | 8,0 | 5 | Ø8 |
| 7622 6xØ10 | 28,5 | 21,5 | 10,0 | 10,0 | 6 | Ø10 |
| 7622 6xØ12** | 28,0 | 18,5 | 10,0 | 12,0 | 6 | Ø12 |
| 7622 8xØ12** | 32,0 | 22,5 | 10,0 | 12,0 | 8 | Ø12 |
| 7622 8xØ14** | 36,0 | 24,0 | 10,0 | 14,0 | 8 | Ø14 |
| 7622 10xØ16** | 40,0 | 21,5 | 10,0 | 16,0 | 10 | Ø16 |
About the product
Banjo connector tube O.D.** On request.
