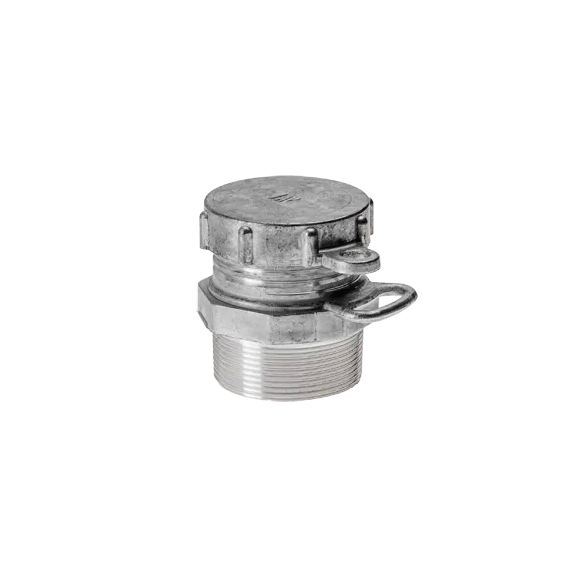

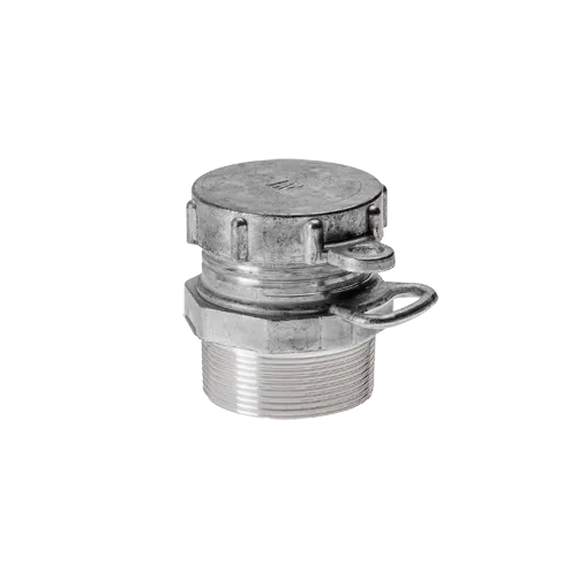

1146 Filling cover zinc with male thread
Specifications

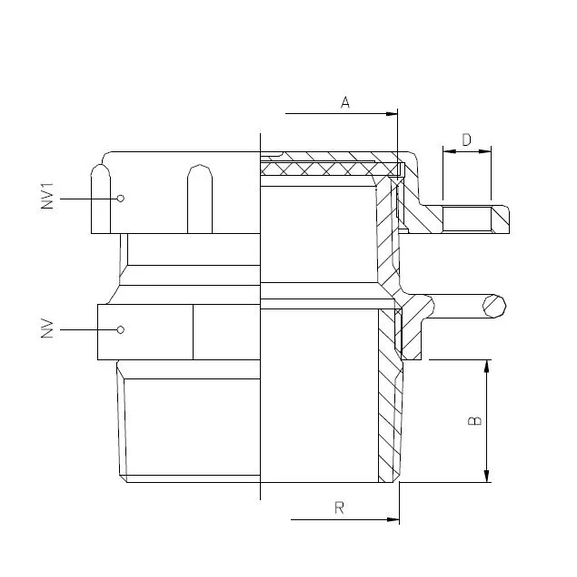

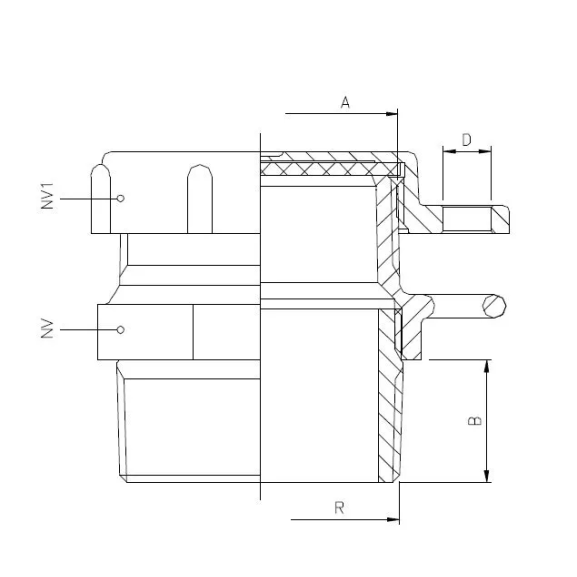

| Item number: | A | HEX | B | Thread G | HEX1 | D |
|---|---|---|---|---|---|---|
| 1146 2 | DS 41 | 68 | 13,0 | 2 | 64 | 10,0 |
About the product
Filling cover zinc with male thread.The lid can be locked on the filler neck with a padlock. The filling cover is normally delivered with a gasket. This secures that the filling cover is tight when the lid is mounted.
Material:
Zink DS 7030 ZnAl4Cu1
Reducer: AlMgSi 1.0 (glued on with Loctite 577)
Gasket: DPI-UNI
Thread for 52 mm hoseadapter DS 41
Thread: Pipethread G DS/ISO 228/1
