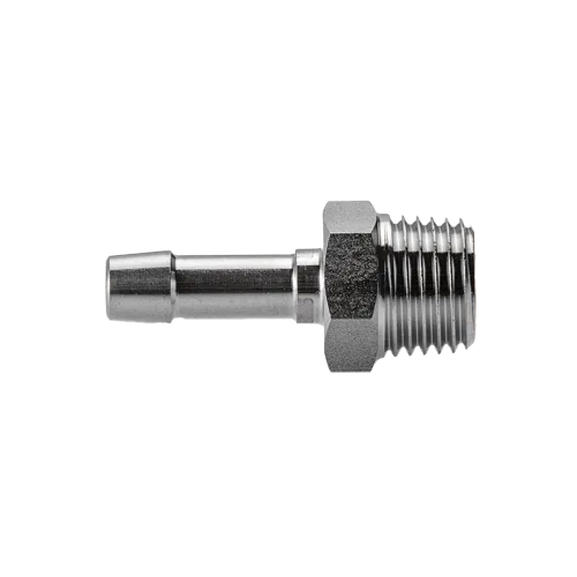

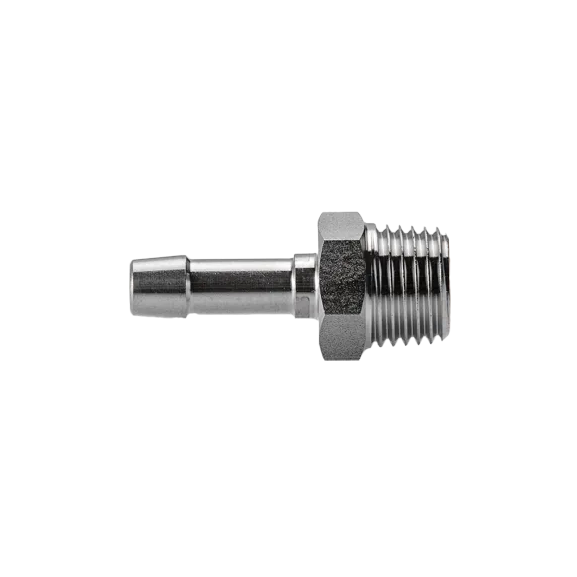

8857 Hose barb adapter
Specifications

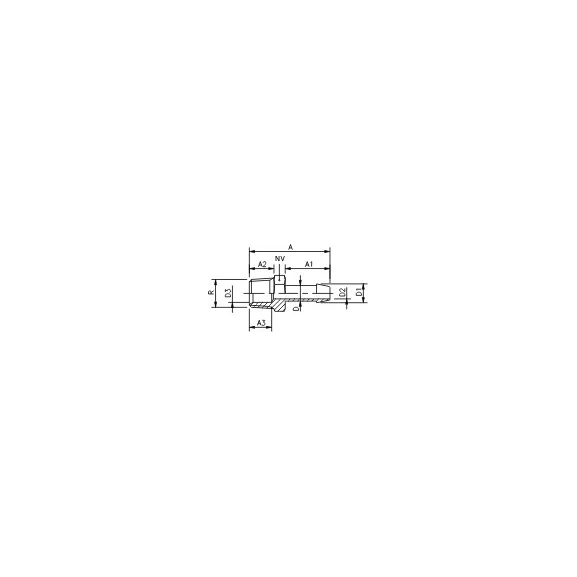

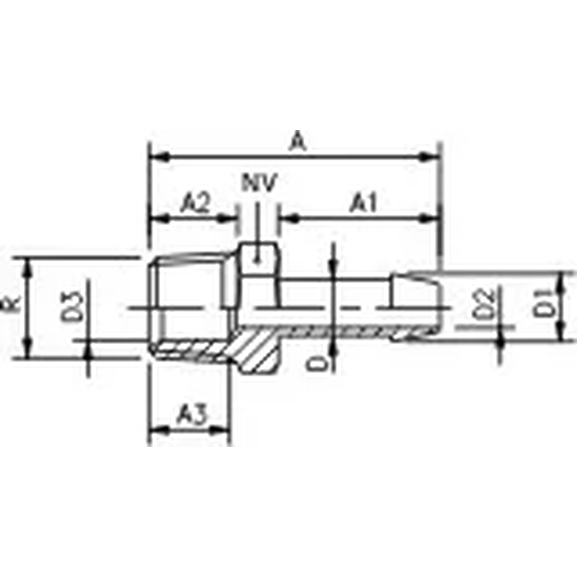

| Item number: | A | A1 | HEX | Thread R | A2 | A3 | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8857 1/8X6 | 35,0 | 20,0 | 11 | 1/8 | 10,0 | 5,0 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 5,1 |
| 8857 1/4X6 | 36,0 | 20,0 | 14 | 1/4 | 11,0 | 10,0 | 7,3 | 6,5 | 6 | 1/4 | 5,0 | 8,1 |
About the product
Hose barb adapter in stainless steel with pipe thread.Material: 1.4404 / AISI316L
