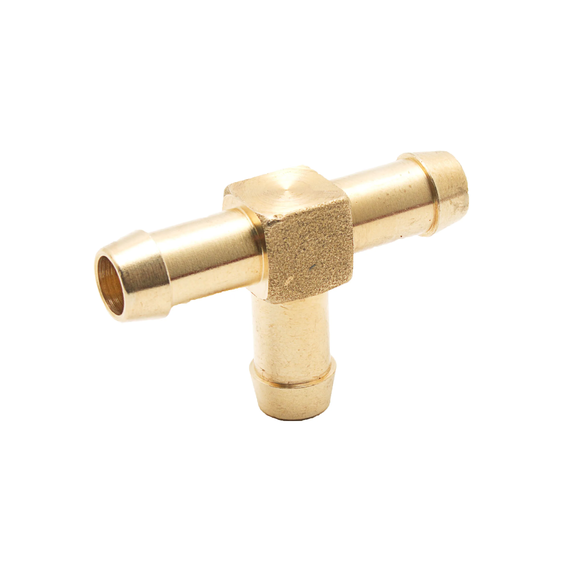

2102 Hose tee
Specifications

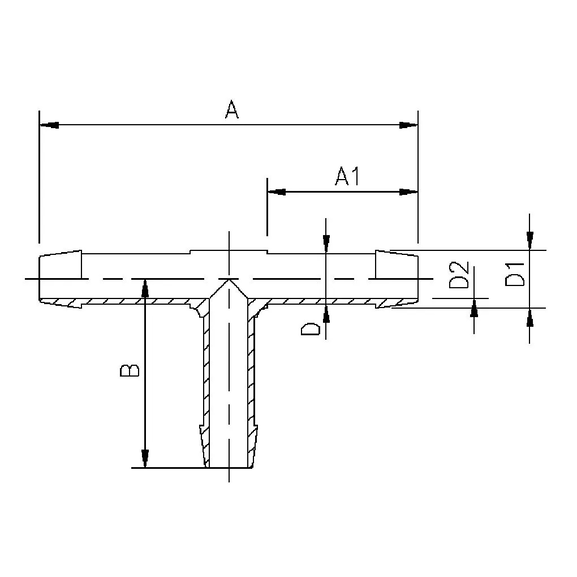

| Item number: | A | A1 | B | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 |
|---|---|---|---|---|---|---|---|---|
| 2102 6 | 49,5 | 19,5 | 24,5 | 7,5 | 6,5 | 6 | 1/4 | 5,0 |
| 2102 8-8-10** | 52,0 | 14,0 | 26,0 | 10/12 | 8,5/10,5 | 8-8-10 | 5/16-5/16-3/8 | 6/8 |
| 2102 10 | 52,0 | 20,0 | 26,0 | 12,0 | 10,5 | 10 | 3/8 | 8,0 |
| 2102 12 | 57,0 | 21,0 | 28,5 | 14,3 | 13,0 | 12 | 1/2 | 9,5 |
| 2102 16 | 63,0 | 22,5 | 32,0 | 18,1 | 16,0 | 16 | 5/8 | 12,8 |
About the product
Tee for hose.** On request.
