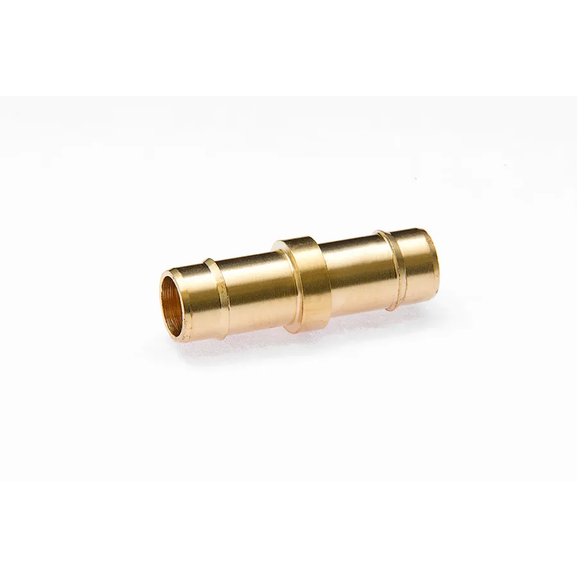

1006 Connector for nylon pipe
Specifications

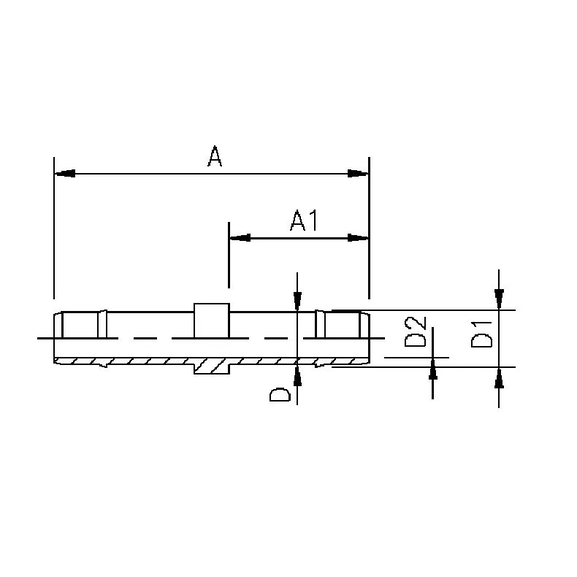

| Item number: | Tube O.D. | Hose O.D. | Hose I.D. | Dia D. | Dia. D1 | Dia. D2 | A | A1 |
|---|---|---|---|---|---|---|---|---|
| 1006 10x1,5 | 10x1,5 | 10,0 | 7,0 | 7,0 | 7,7 | 5,5 | 36,0 | 16,0 |
| 1006 12x1,5 | 12x1,5 | 12,0 | 9,0 | 9,0 | 9,8 | 7,5 | 36,0 | 16,0 |
| 1006 15x1,5 | 15x1,5 | 15,0 | 12,0 | 12,0 | 13,2 | 10 | 36,0 | 16,0 |
| 1006 15x2 | 15x2 | 15,0 | 11,0 | 11,5 | 12,1 | 9,0 | 36,0 | 16,0 |
| 1006 6x1 | 6x1 | 6,0 | 4,0 | 4 | 4,5 | 2 | 31,0 | 14,0 |
| 1006 8x1 | 8x1 | 8,0 | 6,0 | 6,0 | 6,6 | 4,5 | 36,0 | 16,0 |
