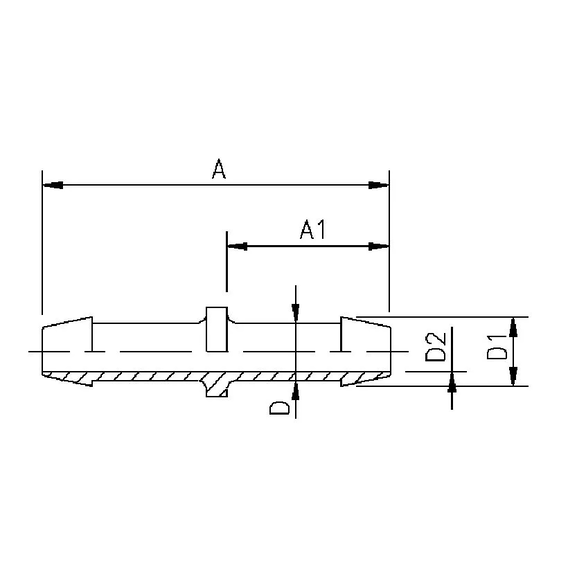

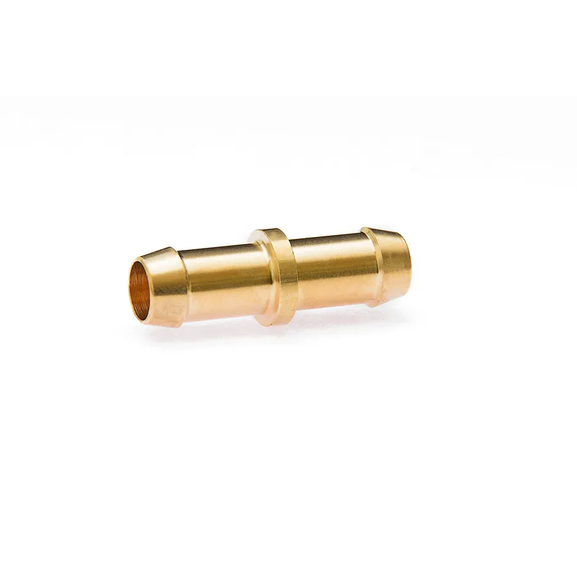

1005 Connector
Specifications
| Item number: | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 |
|---|---|---|---|---|---|---|---|
| 1005 5 | 5 | 3/16 | 6,0 | 7,0 | 4,0 | 42,5 | 20,0 |
| 1005 6 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 42,5 | 20,0 |
| 1005 8 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 42,5 | 20,0 |
| 1005 10 | 10 | 3/8 | 11,0 | 12,5 | 9,0 | 43,0 | 20,0 |
| 1005 12 | 12 | 1/2 | 13,0 | 14,5 | 11,0 | 45,0 | 20,0 |
| 1005 16 | 16 | 5/8 | 16,0 | 17,5 | 13,5 | 50,0 | 23,5 |
| 1005 20 | 20 | 3/4 | 19,1 | 21,5 | 16,0 | 50,0 | 24,0 |
