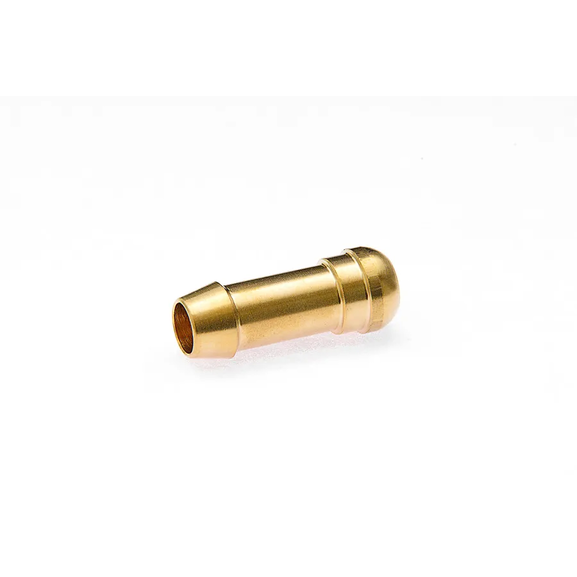

8876-0 Hose barb adapter with female cone
Specifications

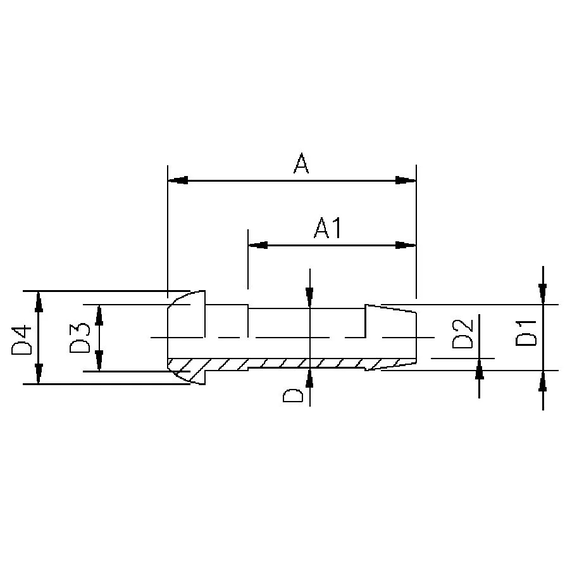

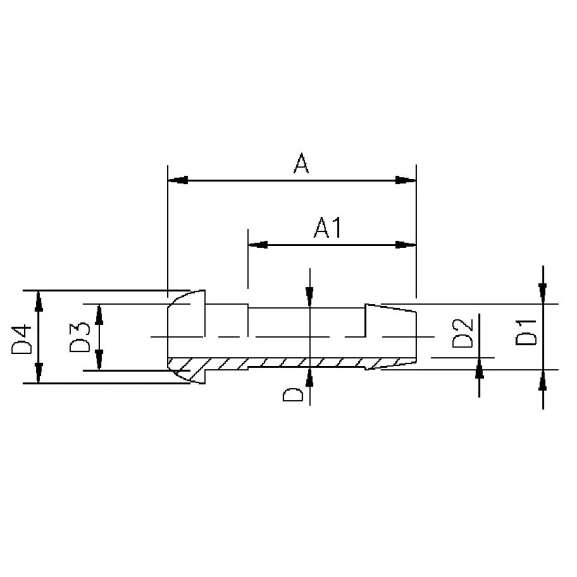

| Item number: | A | A1 | Dia. D1 | Dia D. | Code no. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 | Dia. D4 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8876-0 8876x7,5-3-0 | 23,0 | 16,0 | 4 | 3,2 | 8876 7,5-3-0 | 3 | 1/8 | 2 | 7,4 | 8,5 |
| 8876-0 8876x7,5-4-0 | 27,0 | 6,2 | 5,0 | 8876 7,5-4-0 | 4 | 3 | 7,4 | 8,5 | ||
| 8876-0 8876x7,5-6-0 | 26,0 | 20,0 | 7,4 | 6,5 | 8876 7,5-6-0 | 6 | 1/4 | 4,5 | 7,4 | 8,5 |
| 8876-0 8876x6,5-4-0 | 27,0 | 6,2 | 5,0 | 8876 6,5-4-0 | 4 | 3 | 6,2 | 8,0 | ||
| 8876-0 8876x8-6-01 | 29,5 | 20,0 | 7,9 | 7,0 | 8876 8-6-01 | 6 | 1/4 | 5,0 | 7,9 | 9,5 |
| 8876-0 8876x8-5-0 | 28,0 | 20,0 | 7,0 | 6,0 | 8876 8-5-0 | 5 | 3/16 | 4,0 | 7,9 | 10,4 |
| 8876-0 8876x8-4-0 | 28,0 | 6,2 | 5,0 | 8876 8-4-0 | 4 | 3 | 7,9 | 11,0 | ||
| 8876-0 8876x8-6-0 | 31,0 | 20,0 | 7,9 | 7,0 | 8876 8-6-0 | 6 | 1/4 | 5,0 | 7,9 | 11,0 |
| 8876-0 8876x10-8-01 | 28,0 | 20,0 | 9,9 | 8,5 | 8876 10-8-0 | 8 | 5/16 | 6,5 | 9,9 | 11,0 |
| 8876-0 8876x10-5-01 | 29,0 | 20,0 | 7,0 | 6,0 | 8876 10-5-01 | 5 | 3/16 | 4,0 | 9,9 | 13,0 |
| 8876-0 876x10-6-0 | 29,0 | 20,0 | 8,5 | 7,0 | 876 10-6-0 | 6 | 1/4 | 5,0 | 9,9 | 13,0 |
| 8876-0 8876x10-8-01 | 29,0 | 20,0 | 9,9 | 8,5 | 8876 10-8-01 | 8 | 5/16 | 6,5 | 9,9 | 13,0 |
| 8876-0 8876x12-10-0 | 29,0 | 20,0 | 11,5 | 10,0 | 8876 12-10-0 | 10 | 3/8 | 8 | 11,9 | 13,0 |
| 8876-0 8876x13-12-0 | 29,0 | 20,0 | 13,0 | 12,0 | 8876 13-12-0 | 12 | 1/2 | 10 | 13,0 | 15,0 |
| 8876-0 8876x14-6-0 | 29,0 | 20,0 | 8,5 | 7,0 | 8876 14-6-0 | 6 | 1/4 | 5,0 | 13,9 | 16,0 |
| 8876-0 8876x14-8-0 | 29,0 | 20,0 | 10,5 | 9,0 | 8876 14-8-0 | 8 | 5/16 | 7,0 | 13,9 | 16,0 |
| 8876-0 8876x14-10-0 | 29,0 | 20,0 | 12,5 | 11,0 | 8876 14-10-0 | 10 | 3/8 | 9,0 | 13,9 | 16,0 |
| 8876-0 8876x14-12-0 | 30,0 | 21,0 | 13,5 | 12,0 | 8876 14-12-0 | 12 | 1/2 | 10 | 13,9 | 17,0 |
| 8876-0 8876x20-20-0 | 34,0 | 22,0 | 19,5 | 18,5 | 8876 20-20-0 | 20 | 3/4 | 16,0 | 19,5 | 20,8 |
| 8876-0 8876x20-16-0 | 35,0 | 17,5 | 16,0 | 8876 20-16-0 | 16 | 13,5 | 20,0 | 22,0 | ||
| 8876-0 8876x16-12-0 | 32,5 | 20,0 | 14,5 | 13,0 | 8876 16-12-0 | 12 | 1/2 | 11,0 | 15,8 | 23,0 |
| 8876-0 8876x22-20-0** | 35,0 | 24,0 | 22,0 | 20,0 | 8876 22-20-0 | 20 | 3/4 | 16,0 | 22,0 | 24,0 |
| 8876-0 8876x22-20-01** | 36,5 | 24,0 | 22,0 | 20,0 | 8876 22-20-01 | 20 | 3/4 | 16,0 | 22,0 | 28,0 |
| 8876-0 8876x28-25-0** | 47,5 | 34,0 | 27,0 | 25,0 | 8876 28-25-0 | 25 | 1" | 20,0 | 27,5 | 30,0 |
About the product
Hose barb adapter with female cone.** On request.
