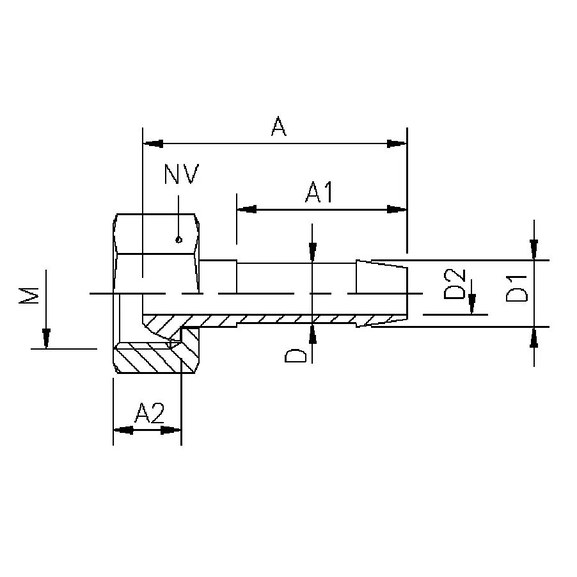

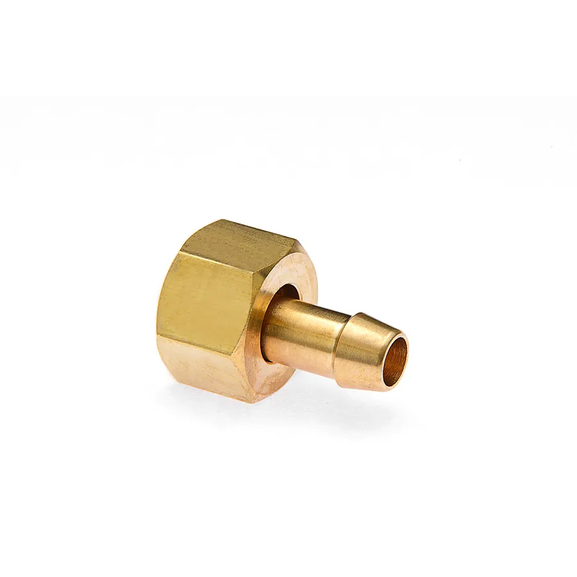

8861M Hose barb adapter with female cone
Specifications
| Item number: | Metric thread M | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|
| 8861M 10x1x3** | 10x1 | 3 | 1/8 | 3,2 | 4 | 2 | 23 | 16,0 | 8,0 | 13 |
| 8861M 10x1x4 | 10x1 | 4 | 5 | 6,2 | 3 | 27,0 | 20,0 | 8,0 | ||
| 8861M 12x1,5x5 | 12x1,5 | 5 | 3/16 | 6,0 | 7,0 | 4,0 | 28,0 | 20,0 | 8,5 | 15 |
| 8861M 14x1,5x4 | 14x1,5 | 4 | 5,0 | 6,2 | 3 | 28,0 | 20,0 | 9,5 | ||
| 8861M 14x1,5x5 | 14x1,5 | 5 | 3/16 | 6,0 | 7,0 | 4,0 | 28,0 | 20,0 | 9,5 | 17 |
| 8861M 14x1,5x6 | 14x1,5 | 6 | 1/4 | 7,0 | 7,9 | 5,0 | 31,0 | 20,0 | 9,5 | 17 |
| 8861M 16x1,5x5 | 16x1,5 | 5 | 3/16 | 6,0 | 7,0 | 4,0 | 29,0 | 20,0 | 10,5 | 19 |
| 8861M 16x1,5x6 | 16x1,5 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 29,0 | 20,0 | 10,5 | 19 |
| 8861M 16x1,5x8 | 16x1,5 | 8 | 5/16 | 8,5 | 9,9 | 6,5 | 28,0 | 20,0 | 10,5 | 19 |
| 8861M 18x1,5x6** | 18x1,5 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 29,0 | 20,0 | 11,0 | 22 |
| 8861M 18x1,5x8** | 18x1,5 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 29,0 | 20,0 | 11,0 | 22 |
| 8861M 18x1,5x10 | 18x1,5 | 10 | 3/8 | 11,0 | 12,5 | 9,0 | 29,0 | 20,0 | 11,0 | 22 |
About the product
Hose barb adapter with female cone. Delivered with nut 61M with metric thread.** On request.
