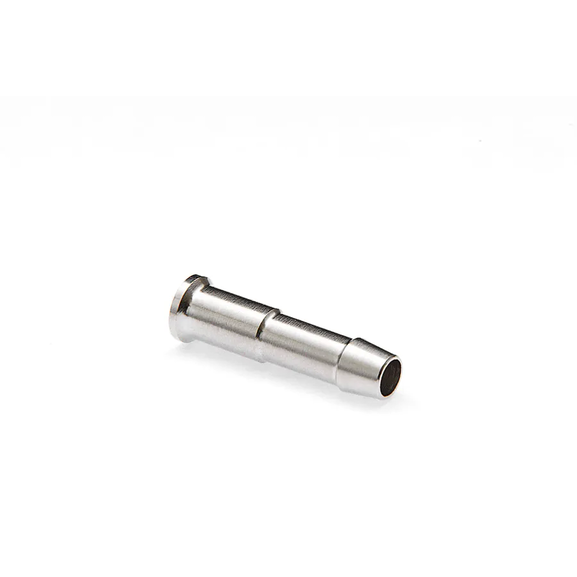

8841-0 Hose barb adapter with flare
Specifications

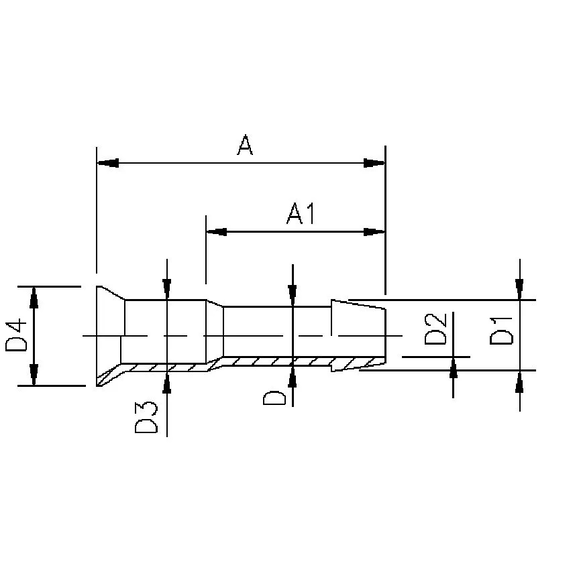

| Item number: | Dia. D4 | Hose I.D. mm | Hose I.D. inch. | Dia D. | Code no. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8841 6-5-0 | 8,0 | 5 | 3/16 | 5,0 | 8841 6-5-0 | 5,9 | 3,5 | 6,0 | 27,0 | 18,0 |
| 8841 6-5-01 | 9,0 | 5 | 3/16 | 5,0 | 8841 6-5-01 | 5,9 | 3,5 | 6,0 | 34,0 | 18,0 |
| 8841 7,5-6-0 | 9,0 | 6 | 1/4 | 6,5 | 8841 7,5-6-0 | 7,3 | 5,0 | 7,3 | 31,0 | 18,0 |
| 8841 8-6-0 | 11,0 | 6 | 1/4 | 6,5 | 8841 8-6-0 | 7,9 | 4,5 | 7,9 | 32,0 | 18,0 |
| 8841 10-6-0 | 14,0 | 6 | 1/4 | 7,0 | 8841 10-6-0 | 8,5 | 5,0 | 9,9 | 32,5 | 19,0 |
| 8841 10-8-0 | 14,0 | 8 | 5/16 | 8,5 | 8841 10-8-0 | 10,0 | 6,5 | 9,9 | 32,5 | 19,0 |
| 8841 11-10-0 | 14,0 | 10 | 3/8 | 10,0 | 8841 11-10-0 | 11,0 | 8,0 | 10,9 | 32,5 | 19,0 |
| 8841 12-8-0 | 15,0 | 8 | 5/16 | 8,5 | 8841 12-8-0 | 10,0 | 6,5 | 12,5 | 31,0 | 18,0 |
| 8841 12-10-0 | 15,0 | 10 | 3/8 | 11,0 | 8841 12-10-0 | 12,5 | 9,0 | 12,5 | 31,0 | 18,0 |
| 8841 16-10-0 | 19,9 | 10 | 3/8 | 10,0 | 8841 16-10-0 | 11,0 | 8,0 | 16,0 | 34,0 | 18,0 |
| 8841 16-16-0 | 19,9 | 16 | 5/8 | 15 | 8841 16-16-0 | 16,0 | 13,0 | 16,0 | 34,0 | 19,0 |
About the product
Hose barb adapter with flare.Delivered nickleplated.
