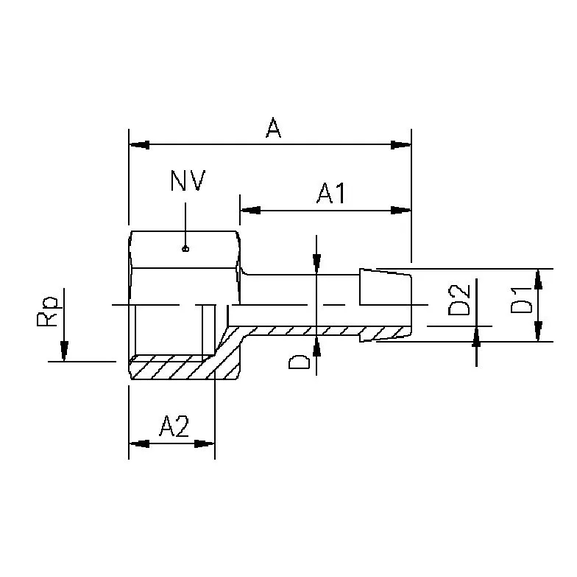

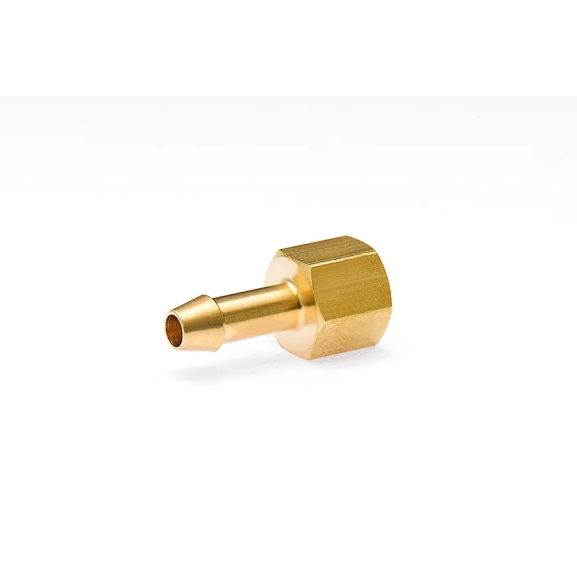

8818 Female hose barb adapter
Specifications
| Item number: | A | A1 | HEX | A2 | Thread Rp | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8818 1/8x6 | 31,0 | 20,0 | 12 | 8,0 | 1/8 | 8,5 | 7,0 | 6 | 1/4 | 5,0 |
| 8818 1/4x6 | 33,0 | 20,0 | 15 | 10,0 | 1/4 | 8,5 | 7,0 | 6 | 1/4 | 5,0 |
| 8818 1/4x10 | 34,0 | 20,0 | 15 | 9,5 | 1/4 | 12,5 | 11,0 | 10 | 3/8 | 8 |
| 8818 3/8x6 | 33,0 | 20,0 | 19 | 10,0 | 3/8 | 8,5 | 7,0 | 6 | 1/4 | 5,0 |
| 8818 3/8x8 | 33,0 | 20,0 | 19 | 10,0 | 3/8 | 10,5 | 9,0 | 8 | 5/16 | 7,0 |
