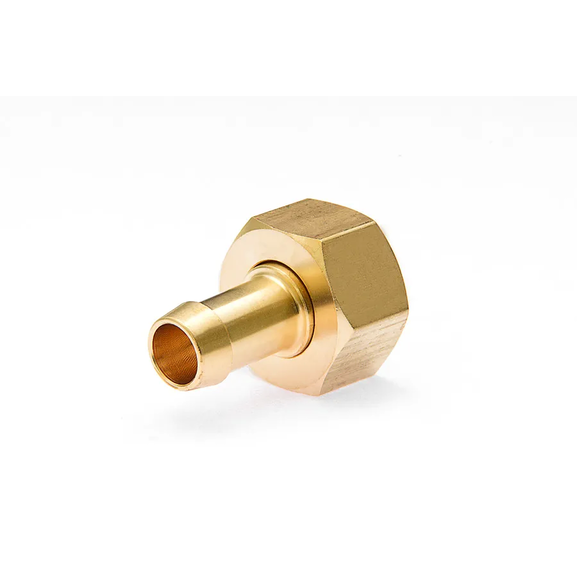

88174B Hose barb adapter with flange
Specifications

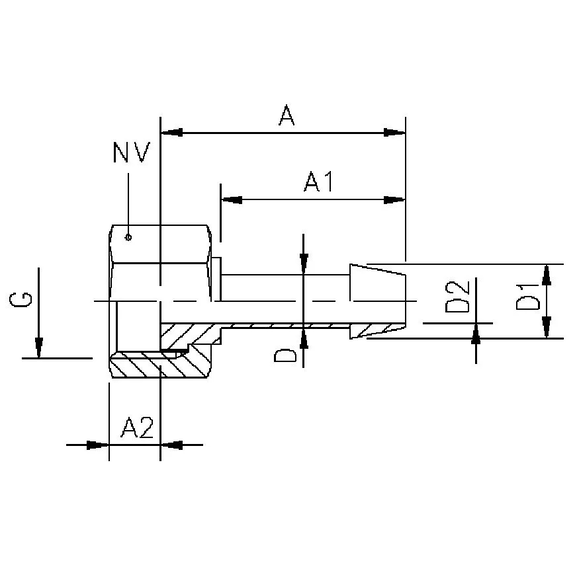

| Item number: | Thread G | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|
| 88174B 1/4x6 | 1/4 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 26,5 | 20,0 | 5,5 | 15 |
| 88174B 1/4x8 | 1/4 | 8 | 5/16 | 8,5 | 9,9 | 5,5 | 26,5 | 20,0 | 5,5 | 15 |
| 88174B 3/8x8 | 3/8 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 26,5 | 20,0 | 7,0 | 19 |
| 88174B 1/2x8 | 1/2 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 26,1 | 20,0 | 8,0 | 24 |
| 88174B 1/2x10 | 1/2 | 10 | 3/8 | 10,0 | 11,0 | 8,0 | 26,5 | 20,0 | 8,0 | 24 |
| 88174B 1/2x12 | 1/2 | 12 | 1/2 | 11,0 | 12,5 | 9,0 | 27,5 | 20,0 | 8,0 | 24 |
| 88174B 3/4x12 | 3/4 | 12 | 1/2 | 11,0 | 12,5 | 9,0 | 26,5 | 20,0 | 10,0 | 32 |
| 88174B 3/4x16 | 3/4 | 16 | 5/8 | 16,0 | 17,5 | 13,5 | 30,5 | 24,0 | 11,0 | 32 |
| 88174B 3/4x20 | 3/4 | 20 | 3/4 | 20,0 | 22,0 | 16,0 | 40,5 | 34,0 | 11,0 | 32 |
| 88174B 1"x20 | 1" | 20 | 3/4 | 20,0 | 22,0 | 16,0 | 30,5 | 24,0 | 12,0 | 38 |
| 88174B 1"x25** | 1" | 25 | 1" | 25,0 | 27,0 | 20,0 | 40,5 | 34,0 | 12,0 | 38 |
About the product
Hose barb adapter with flange.Delivered with nut with parallel thread.
Delivered excl. pakning.
** On request.
