88161B Hose barb adapter for flare fittings
Specifications

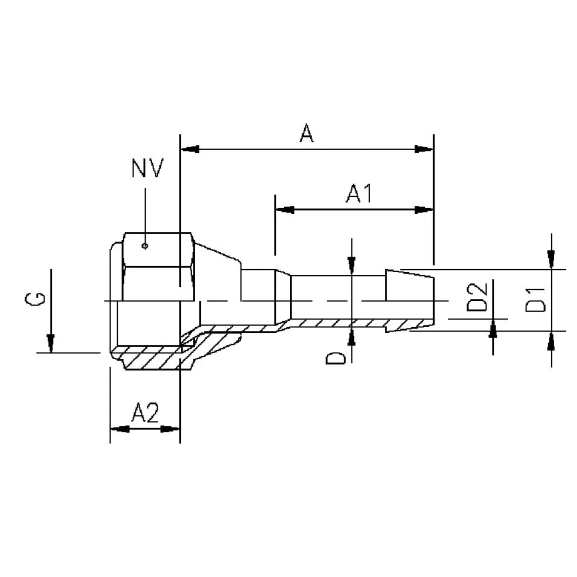

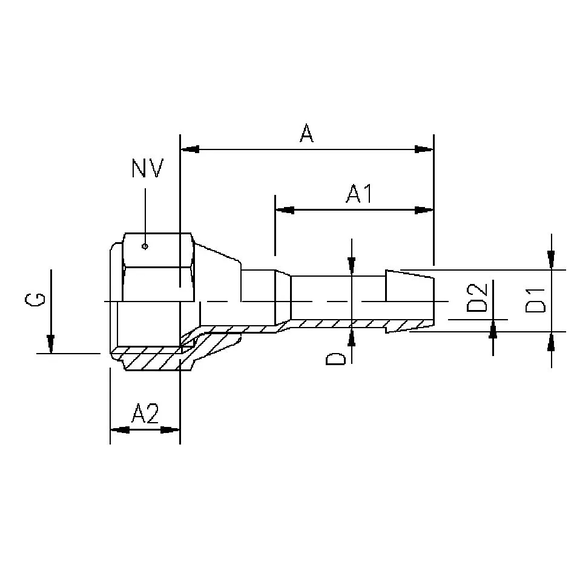

| Item number: | Thread G | Hose I.D. mm | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 88161B 1/8x4 | 1/8 | 4 | 4,8 | 5,5 | 3,5 | 27,0 | 18,5 | 7,5 | ||
| 88161B 1/8x5 | 1/8 | 5 | 3/16 | 5,0 | 6,0 | 4,0 | 27,0 | 18,5 | 7,5 | 13 |
| 88161B 1/4x6 | 1/4 | 6 | 1/4 | 6,5 | 7,9 | 4,5 | 32,0 | 18,5 | 8,0 | 15 |
| 88161B 3/8x6 | 3/8 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 31,0 | 19,0 | 10,0 | 19 |
| 88161B 3/8x8 | 3/8 | 8 | 5/16 | 8,5 | 10 | 6,5 | 31,0 | 18,5 | 10,0 | 19 |
| 88161B 3/8x10 | 3/8 | 10 | 3/8 | 10,0 | 10 | 8,0 | 31,0 | 18,5 | 8,5 | 19 |
About the product

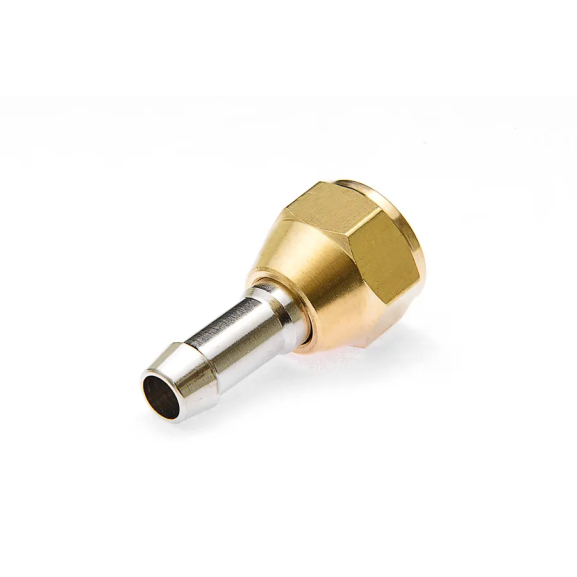

Hose barb adapter for flare fittings. Delivered with nut 161B with parallel pipe thread.Delivered nickleplated.
** On request.
