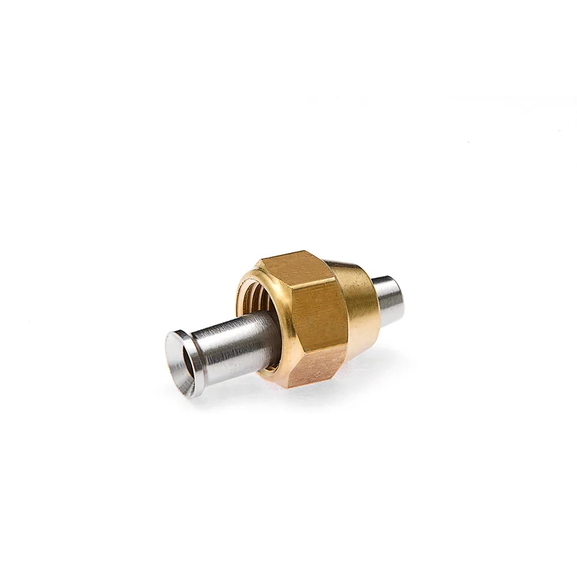

88141F Hose barb adapter for flare fittings

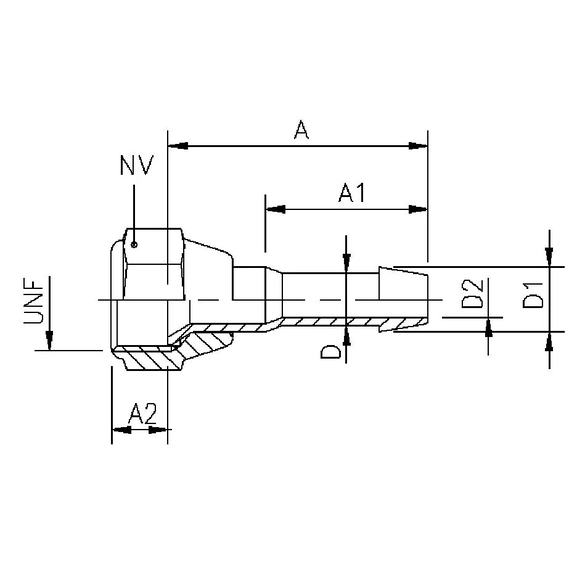

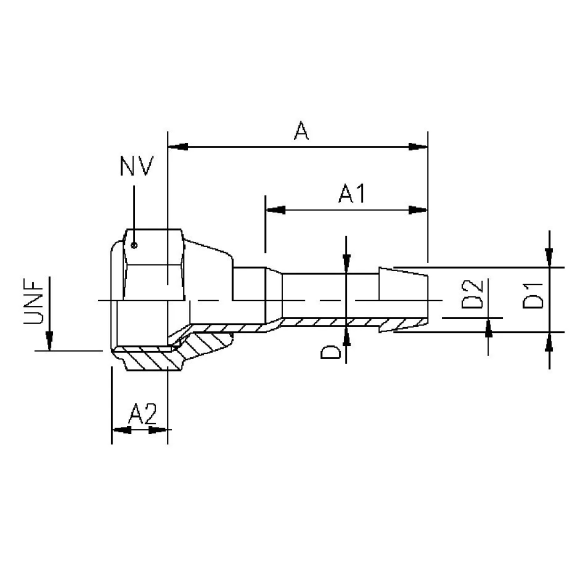

Specifications
| Item number: | Thread UNF | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|
| 88141F 3/4-16x8** | 3/4-16 | 8 | 5/16 | 8,5 | 10 | 6,5 | 20,0 | 20,0 | 11,5 | 22 |
| 88141F 3/4-16x10** | 3/4-16 | 10 | 3/8 | 11,0 | 12,5 | 9,0 | 31,0 | 18,5 | 12,0 | 22 |
| 88141F 5/8-18x6 | 5/8-18 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 31,0 | 19 | 9,0 | 18 |
| 88141F 5/8-18x8** | 5/8-18 | 8 | 5/16 | 8,5 | 10 | 6,5 | 31,0 | 18,5 | 9,0 | 18 |
| * 88141F 5/8-18x10 | 5/8-18 | 10 | 3/8 | 10,0 | 11,0 | 8,0 | 31,0 | 18,5 | 8,5 | 18 |
| 88141F 7/8-14x10 | 7/8-14 | 10 | 3/8 | 10,0 | 11,0 | 8,0 | 34,0 | 21,0 | 12,0 | 26 |
| 88141F 7/16-20x5** | 7/16-20 | 5 | 3/16 | 5,0 | 6 | 3,5 | 34,0 | 18,5 | 7,5 | 13 |
| 88141F 7/16-20x11 | 7/16-20 | 6 | 1/4 | 6,5 | 6,5 | 5,0 | 31,0 | 18,5 | 7,0 | 13 |
| 88141F 1/2-20x6 | 1/2-20 | 6 | 1/4 | 6,5 | 7,9 | 4,5 | 32,0 | 18,5 | 7,5 | 15 |
| 88141F 3/8-24x4** | 3/8-24 | 4 | 4,8 | 5,5 | 3,5 | 27,0 | 18,5 | 7,0 | ||
| 88141F 3/8-24x5** | 3/8-24 | 5 | 3/16 | 5,0 | 6 | 4,0 | 27,0 | 18,5 | 7,0 | 11 |
About the product
Hose barb adapter for flare fittings. Delivered with nut 41FS with UNF thread.* Sizes 5/8-18x6: Please ask for price and time of delivery.
** On request.
