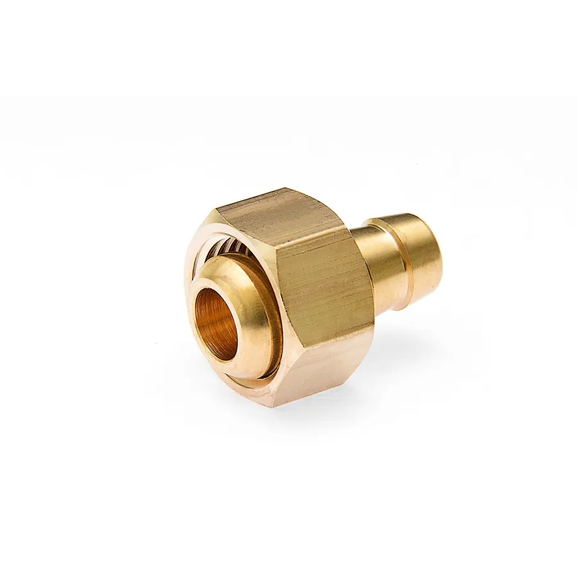

1002B Hose barb adapter with cone
Specifications

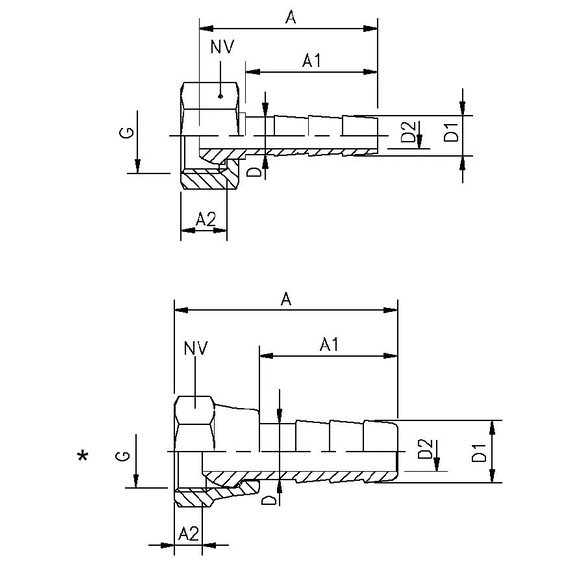

| Item number: | VVS code xxx | A | A1 | A2 | Thread G | Dia. D1 | Dia D. | Hose I.D. mm | Dia. D2 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1002B 1/8x4 | 004 | 27,5 | 20,5 | 8,0 | 1/8 | 5 | 4,5 | 4 | 3 | ||
| 1002B 1/8x5 | 005 | 27,5 | 20,5 | 12 | 8,0 | 1/8 | 6,0 | 5,0 | 5 | 3/16 | 4,0 |
| 1002B 1/8x6 | 006 | 30,0 | 23,0 | 12 | 8,0 | 1/8 | 7,0 | 6,5 | 6 | 1/4 | 4,5 |
| 1002B 1/4x6 | 036 | 31,0 | 23,0 | 16 | 8,0 | 1/4 | 7,0 | 6,5 | 6 | 1/4 | 4,5 |
| 1002B 1/4x8 | 008 | 31,0 | 23,0 | 16 | 8,5 | 1/4 | 9,0 | 8,0 | 8 | 5/16 | 6,5 |
| 1002B 1/4x10 * | 010 | 34,5 | 29,5 | 17 | 10,5 | 1/4 | 11,0 | 10 | 10 | 3/8 | 7,0 |
| 1002B 1/4x12 * | 012 | 34,5 | 29,5 | 17 | 10,5 | 1/4 | 13,0 | 12,0 | 12 | 1/2 | 10 |
| 1002B 3/8x6 | 066 | 32,0 | 23,0 | 19 | 10,0 | 3/8 | 7,0 | 6,5 | 6 | 1/4 | 4,5 |
| 1002B 3/8x8 | 038 | 32,0 | 23,0 | 19 | 10,0 | 3/8 | 9,0 | 8,0 | 8 | 5/16 | 6,5 |
| 1002B 3/8x10 | 040 | 33,5 | 24,5 | 19 | 10,0 | 3/8 | 11,0 | 10,0 | 10 | 3/8 | 8,0 |
| 1002B 3/8x12 | 042 | 33,5 | 24,5 | 19 | 10,0 | 3/8 | 13,0 | 12,0 | 12 | 1/2 | 10 |
| 1002B 1/2x10 | 070 | 33,5 | 24,5 | 24 | 11,0 | 1/2 | 11,0 | 10,0 | 10 | 3/8 | 8,0 |
| 1002B 1/2x12 | 072 | 33,5 | 24,5 | 24 | 11,0 | 1/2 | 13,0 | 12,0 | 12 | 1/2 | 10 |
| 1002B 1/2x16 | 016 | 35,0 | 24,5 | 24 | 11,0 | 1/2 | 17,0 | 15,9 | 16 | 5/8 | 13,5 |
| 1002B 3/4x20 ** | 020 | 39,5 | 29,0 | 32 | 14,0 | 3/4 | 22,0 | 20,0 | 20 | 3/4 | 16,0 |
| 1002B 1"x20 ** | 050 | 41,5 | 29,0 | 38 | 15,0 | 1" | 22,0 | 20,0 | 20 | 3/4 | 16,0 |
| 1002B 1"x25 ** | 025 | 48,5 | 35,0 | 38 | 15,0 | 1" | 27,0 | 25,0 | 25 | 1" | 20,0 |
About the product
Hose barb adapter with cone with nut and parallel pipe thread.* At sizes 1/4x10 and 1/4x12 the nut is pressed on.
** Price on request.
