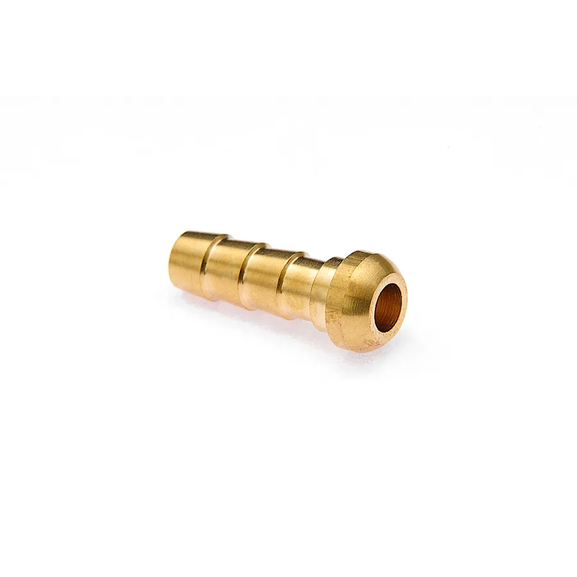

1002B-0 Hose barb adapter with cone

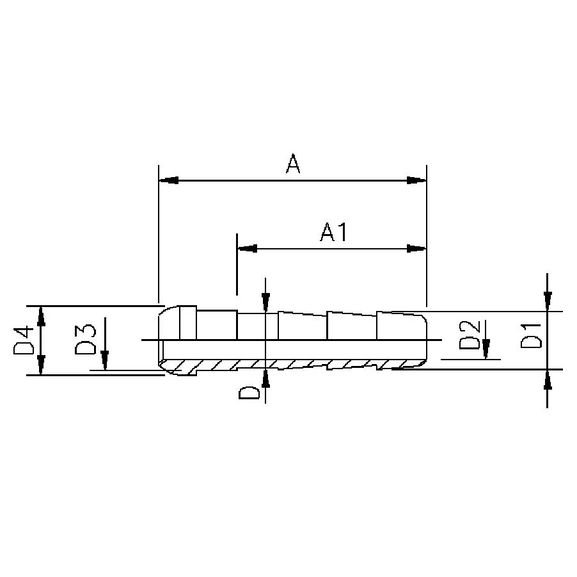

Specifications
| Item number: | Dia. D4 | Hose I.D. mm | Dia D. | Code no. | Dia. D1 | Dia. D2 | Dia. D3 | A | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1002Bx1/8x4-0 | 8,5 | 4 | 4,5 | 1002B 1/8x4-0 | 5 | 3 | 7,3 | 27,5 | ||
| 1002Bx1/8x5-0 | 8,5 | 5 | 3/16 | 5,0 | 1002B 1/8x5-0 | 6 | 4,0 | 7,3 | 27,5 | 20,5 |
| 1002Bx1/8X6-0 | 8,5 | 6 | 1/4 | 6,5 | 1002B 1/8X6-0 | 7,0 | 4,5 | 7,3 | 30,0 | 23,0 |
| 1002Bx1/4x6-0 | 10,0 | 6 | 1/4 | 6,5 | 1002B 1/4x6-0 | 7,0 | 4,5 | 8,0 | 31,0 | 23,0 |
| 1002Bx1/4x8-0 | 11,0 | 8 | 5/16 | 8,0 | 1002B 1/4x8-0 | 9,0 | 6,5 | 9,5 | 31,0 | 23,0 |
| 1002Bx1/8X6-0 | 13,0 | 6 | 1/4 | 6,5 | 1002B 1/8X6-0 | 7,0 | 4,5 | 9,9 | 32,0 | 23,0 |
| 1002Bx3/8x8-0 | 13,0 | 8 | 5/16 | 8,0 | 1002B 3/8x8-0 | 9,0 | 6,5 | 9,9 | 32,0 | 23,0 |
| 1002Bx3/8x10-0 | 13,0 | 10 | 3/8 | 10,0 | 1002B 3/8x10-0 | 11,0 | 8,0 | 12,0 | 33,5 | 28,0 |
| 1002Bx3/8x12-0 | 15,0 | 12 | 1/2 | 12,0 | 1002B 3/8x12-0 | 13,0 | 10 | 13,1 | 33,5 | 28,0 |
| 1002Bx1/2x10-0 | 16,0 | 10 | 3/8 | 10,0 | 1002B 1/2x10-0 | 11,0 | 8,0 | 13,9 | 33,5 | 28,0 |
| 1002Bx1/2x12-0 | 17,0 | 12 | 1/2 | 12,0 | 1002B 1/2x12-0 | 13,0 | 10 | 13,9 | 33,5 | 28,0 |
| 1002Bx1/2x16-0 | 18,9 | 16 | 5/8 | 15,9 | 1002B 1/2x16-0 | 17,0 | 13,5 | 17,9 | 35,0 | 28,0 |
| 1002Bx3/4x20-0 ** | 24,0 | 20 | 3/4 | 20,0 | 1002B 3/4x20-0 | 22,0 | 16,0 | 22,0 | 39,5 | 32,5 |
| 1002Bx1x20-0 ** | 28,0 | 20 | 1" | 20,0 | 1002B 1x20-0 | 22,0 | 16,0 | 22,0 | 41,5 | 32,5 |
| 1002Bx1x25-0 ** | 30,0 | 25 | 1" | 25,0 | 1002B 1x25-0 | 27,0 | 20,0 | 27,5 | 48,5 | 38,5 |
About the product
Hose barb adapter with cone.VVS nr. 36 8654 xxx
** Price on request.
