8858 Hose barb adapter
Specifications

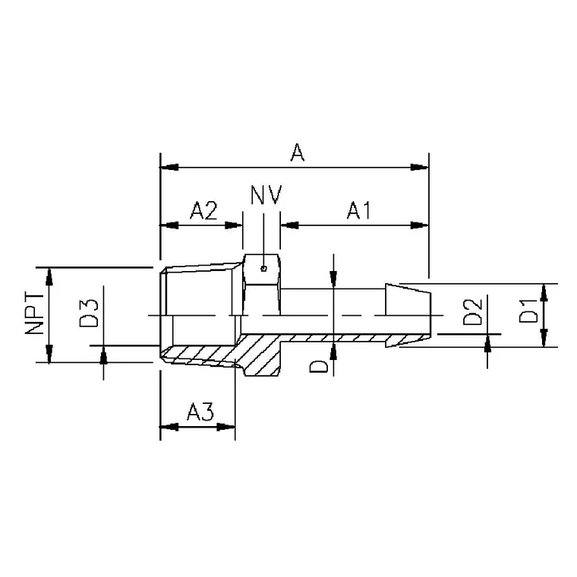

| Item number: | Thread NPT | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8858 1/4x6 | 1/4 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 8,1 | 36,0 | 20,0 | 11,0 | 10,0 | 14 |
| 8858 1/4x8 | 1/4 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 10,1 | 36,0 | 20,0 | 11,0 | 10,0 | 14 |
| 8858 1/8x6 | 1/8 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 5,1 | 35,0 | 20,0 | 10,0 | 8,0 | 11 |
| 8858 3/8x6 | 3/8 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 10,1 | 39,0 | 20,0 | 13,0 | 12,0 | 17 |
| 8858 3/8x8 | 3/8 | 8 | 5/16 | 9,0 | 10,5 | 7,0 | 10,1 | 39,0 | 20,0 | 13,0 | 12,0 | 17 |
| 8858 3/8x10 | 3/8 | 10 | 3/8 | 11,0 | 12,5 | 9,0 | 10,1 | 39,0 | 20,0 | 13,0 | 12,0 | 17 |
About the product

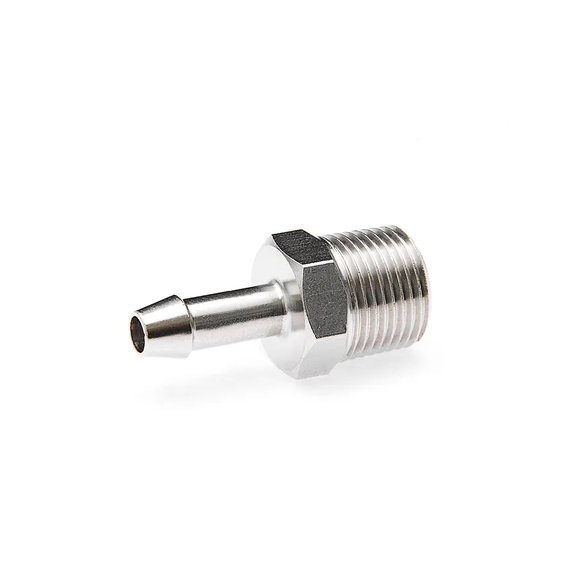

Hose barb adapter with NPT hread.Delivered nickleplated.
Please note! Price and delivery for 8858 1/4Nx8 is on request!
