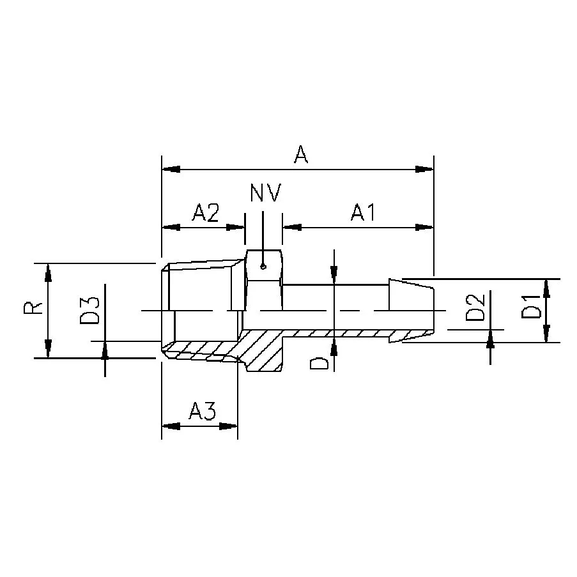

8856 Hose barb adapter
Specifications
| Item number: | VVS code xxx | A | A1 | HEX | Thread R | A2 | A3 | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8856 1/8x5 | 005 | 35,0 | 20,0 | 11 | 1/8 | 10,0 | 5,0 | 7,0 | 6,0 | 5 | 3/16 | 4,0 | 5,1 |
| 8856 1/8x6 | 006 | 35,0 | 20,0 | 11 | 1/8 | 10,0 | 5,0 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 5,1 |
| 8856 1/8x4 | 004 | 35,0 | 20,0 | 1/8 | 10,0 | 5,0 | 5,5 | 4,5 | 4 | 3 | 5,1 | ||
| 8856 1/4x4 | 36,0 | 20,0 | 1/4 | 11,0 | 5,5 | 4,5 | 4 | 3 | 8,1 | ||||
| 8856 1/4x5 | 035 | 36,0 | 20,0 | 14 | 1/4 | 11,0 | 10,0 | 7,0 | 6,0 | 5 | 3/16 | 4,0 | 8,1 |
| 8856 1/4x6 | 036 | 36,0 | 20,0 | 14 | 1/4 | 11,0 | 10,0 | 7,3 | 6,5 | 6 | 1/4 | 5,0 | 8,1 |
| 8856 1/4x8 | 008 | 36,0 | 20,0 | 14 | 1/4 | 11,0 | 10,0 | 10,5 | 9,0 | 8 | 5/16 | 7,0 | 8,1 |
| 8856 1/4x10 | 010 | 36,0 | 20,0 | 14 | 1/4 | 11,0 | 10,0 | 12,5 | 11,0 | 10 | 3/8 | 9,0 | 9,0 |
| 8856 3/8x6 | 066 | 39,0 | 20,0 | 17 | 3/8 | 13,0 | 12,0 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 10,1 |
| 8856 3/8x8 | 038 | 39,0 | 20,0 | 17 | 3/8 | 13,0 | 12,0 | 10,5 | 9,0 | 8 | 5/16 | 7,0 | 10,1 |
| 8856 3/8x10 | 040 | 39,0 | 20,0 | 17 | 3/8 | 13,0 | 12,0 | 12,5 | 11,0 | 10 | 3/8 | 9,0 | 10,1 |
| 8856 1/2x6 | 096 | 43,5 | 21,0 | 21 | 1/2 | 16,0 | 12,0 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 12,1 |
| 8856 1/2x8 | 068 | 42,5 | 20,0 | 21 | 1/2 | 16,0 | 12,0 | 10,5 | 9,0 | 8 | 5/16 | 7,0 | 12,1 |
| 8856 1/2x12 | 042 | 43,5 | 21,0 | 21 | 1/2 | 16,0 | 12,0 | 14,5 | 13,0 | 12 | 1/2 | 11,0 | 12,1 |
| 8856 3/4x12 | 072 | 45,5 | 21,0 | 27 | 3/4 | 16,0 | 22,0 | 14,5 | 13,0 | 12 | 1/2 | 11,0 | 20,1 |
| 8856 3/4x16 | 016 | 49,0 | 24,5 | 27 | 3/4 | 16,0 | 19,0 | 18,0 | 16,0 | 16 | 5/8 | 13,0 | 20,1 |
| 8856 3/4x20 | 020 | 50,5 | 26,0 | 27 | 3/4 | 16,0 | 22,0 | 22,0 | 20,0 | 20 | 3/4 | 16,0 | 20,1 |
| 8856 3/4x25 | 025 | 54,5 | 30,0 | 27 | 3/4 | 16,0 | 22,0 | 27,0 | 25,0 | 25 | 1" | 20,0 | 20,1 |
| 8856 1"x25 | 055 | 66,0 | 34,0 | 34 | 1 | 22,0 | 25,0 | 27,0 | 25,0 | 25 | 1 | 20,0 | 22,1 |
About the product

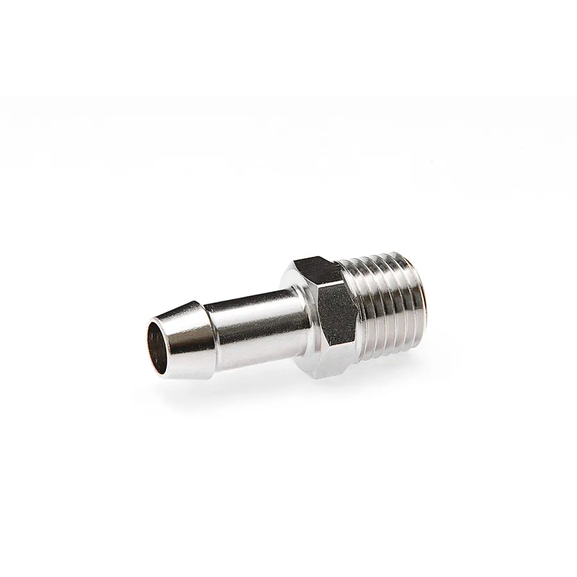

Hose barb adapter with pipe thread.* Delivered nickelplated - however not for the sizes: 3/4x12, 3/4x16, 3/4x20, 3/4x25 og 1x25, which are delivered without surface treatment.
