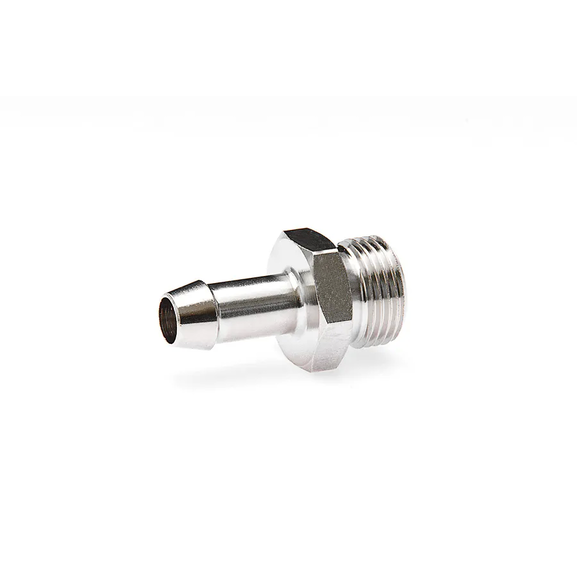

8846 Hose barb adapter
Specifications
| Item number: | Thread G | Hose I.D. mm | Hose I.D. inch. | VVS code xxx | Dia D. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8846 1/8x5 | 1/8 | 5 | 3/16 | 005 | 6,0 | 6,5 | 4,0 | 5,1 | 33,0 | 20,0 | 8,0 | 5,0 | 11 |
| 8846 1/8x6 | 1/8 | 6 | 1/4 | 006 | 6,5 | 7,3 | 5,0 | 5,1 | 33,0 | 20,0 | 8,0 | 5,0 | 12 |
| 8846 1/4x6 | 1/4 | 6 | 1/4 | 036 | 7,0 | 8,5 | 5,0 | 8,1 | 33,5 | 20,0 | 8,5 | 5,0 | 16 |
| 8846 3/8x6 | 3/8 | 6 | 1/4 | 066 | 7,0 | 8,5 | 5,0 | 10,1 | 35,5 | 20,0 | 10,0 | 6,5 | 19 |
| 8846 3/8x8 | 3/8 | 8 | 5/16 | 038 | 9,0 | 10,5 | 7,0 | 10,1 | 35,5 | 20,0 | 10,0 | 6,5 | 19 |
| 8846 1/2x8 | 1/2 | 8 | 5/16 | 068 | 9,0 | 10,5 | 7,0 | 14,1 | 38,5 | 20,0 | 12,0 | 8,0 | 23 |
| 8846 1/2x10 | 1/2 | 10 | 3/8 | 010 | 11,0 | 12,0 | 9,0 | 15,1 | 38,5 | 20,0 | 12,0 | 8,0 | 23 |
| 8846 1/2x12 | 1/2 | 12 | 1/2 | 012 | 13,0 | 14,5 | 11,0 | 14,1 | 39,5 | 21,0 | 12,0 | 8,0 | 23 |
About the product
Hose barb adapter with parallel pipe thread.Delivered nickleplated
