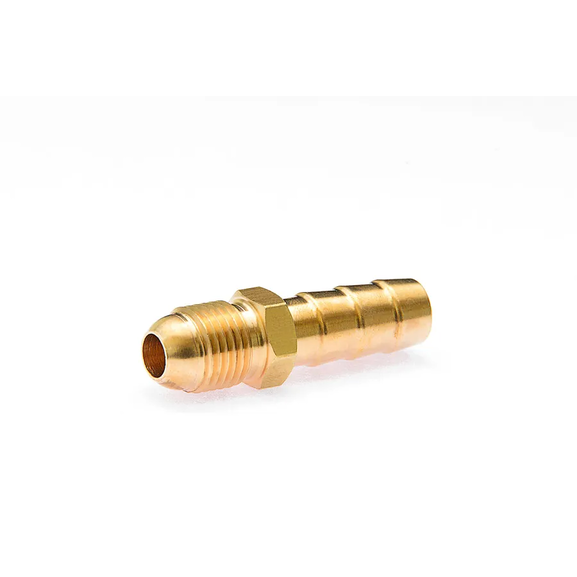

88244 Hose barb adapter with flare
Specifications

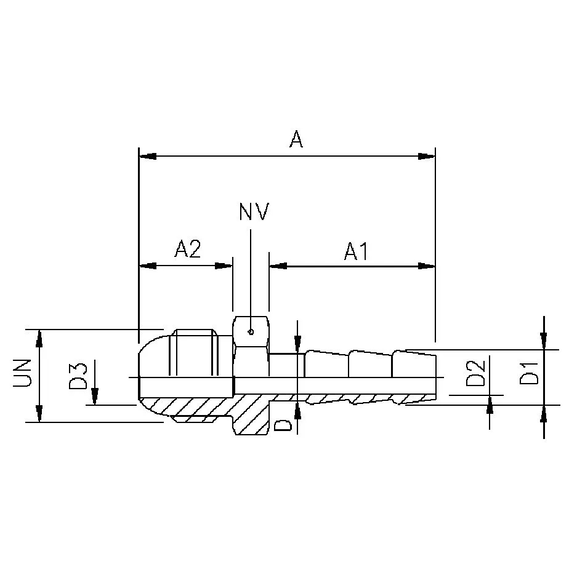

| Item number: | Thread UNF | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|
| 88244 3/4-16x12** | 3/4-16 | 12 | 1/2 | 12,0 | 13,0 | 10 | 49,5 | 24,5 | 19,0 | 19 |
| 88244 5/8-18x10 | 5/8-18 | 10 | 3/8 | 10,0 | 11,0 | 8,0 | 46,5 | 24,5 | 16,0 | 16 |
| 88244 7/16-20x10 | 7/16-20 | 10 | 3/8 | 10 | 11,0 | 8,0 | 43,5 | 24,5 | 14,0 | 13 |
| 88244 1/2-20x6** | 1/2-20 | 6 | 1/4 | 6,5 | 7,5 | 4,5 | 43,0 | 23,0 | 15,0 | 13 |
| 88244 1/2-20x8 | 1/2-20 | 8 | 5/16 | 8,0 | 9,0 | 6,5 | 43,0 | 23,0 | 15,0 | 13 |
| 88244 1/2-20x10 | 1/2-20 | 10 | 3/8 | 10,0 | 11,0 | 8,0 | 44,5 | 24,5 | 15,0 | 13 |
About the product
Hose barb adapter with flared copper pipe and UNF thread.Can be used together with nuts 41F and 41FS.
