88102 Hose barb adapter with pipe end (inch)

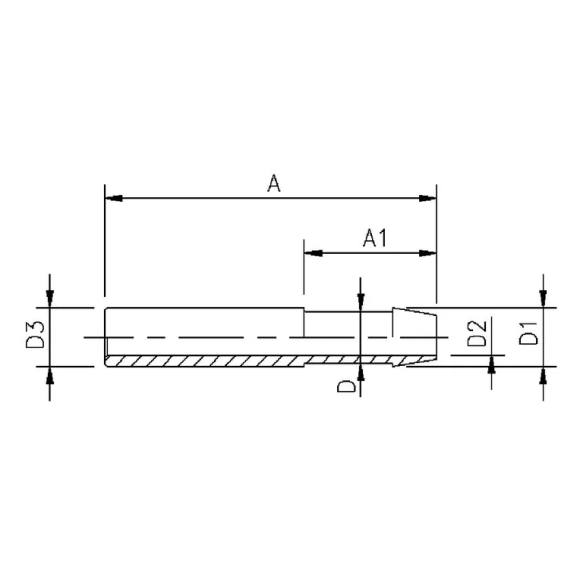

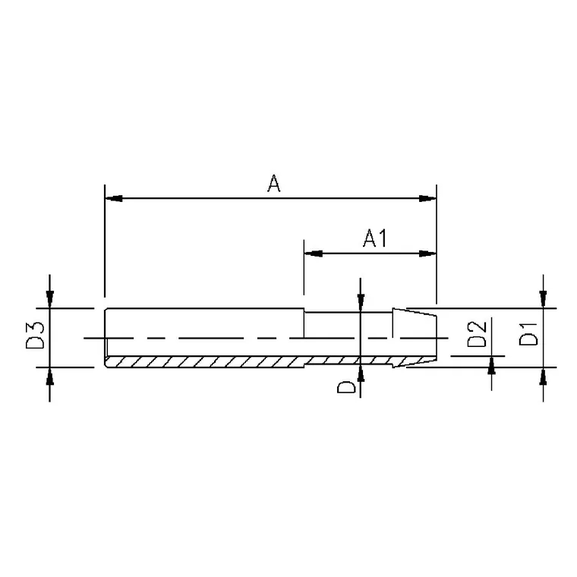

Specifications
| Item number: | A | Dia. D1 mm | Dia. D2 mm | Dia. D mm | Hose I.D. mm | Dia. D3 inch. | ||
|---|---|---|---|---|---|---|---|---|
| 88102 1/8x4 | 35,0 | 5,5 | 3,0 | 4,5 | 4 | 1/8 | ||
| 88102 3/16x5 | 45,0 | 20,0 | 7,5 | 4,0 | 6,0 | 5 | 3/16 | 3/16 |
| 88102 3/16x6 | 40,8 | 20,0 | 8,5 | 3,2 | 7,0 | 6 | 1/4 | 3/16 |
| 88102 3/8x6 | 45,0 | 20,0 | 8,5 | 5,0 | 7,0 | 6 | 1/4 | 3/8 |
| 88102 1/4x6 | 45,0 | 20,0 | 8,0 | 5,0 | 7,0 | 6 | 1/4 | 1/4 |
| 88102 5/16x6 | 45,0 | 20,0 | 8,0 | 5,0 | 7,0 | 6 | 1/4 | 5/16 |
| 88102 5/16x8 | 45,0 | 20,0 | 10,5 | 6,0 | 9,0 | 8 | 5/16 | 5/16 |
| 88102 3/8x8 * | 47,0 | 20,0 | 10,5 | 7,0 | 9,0 | 8 | 5/16 | 3/8 |
| 88102 3/8x10 | 47,0 | 20,0 | 12,0 | 8,5 | 11,0 | 10 | 3/8 | 3/8 |
| 88102 1/2x10 | 55,0 | 20,0 | 12,5 | 9,0 | 11,0 | 10 | 3/8 | 1/2 |
| 88102 1/2x12 | 49,0 | 20,0 | 12,8 | 9,0 | 12,0 | 12 | 1/2 | 1/2 |

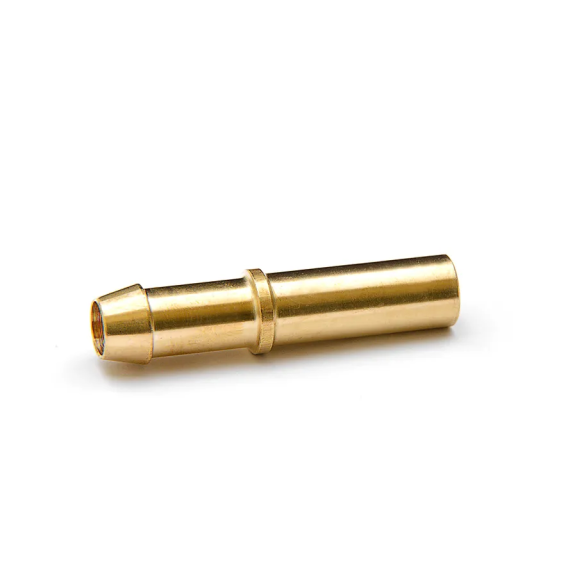

About the product
Hose barb adapter with pipe end (measured in inches).* Size 8x3/8: Please ask for price and time of delivery.
