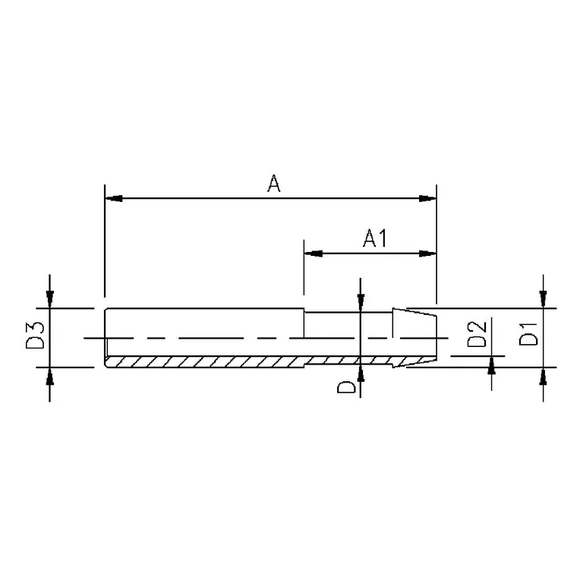

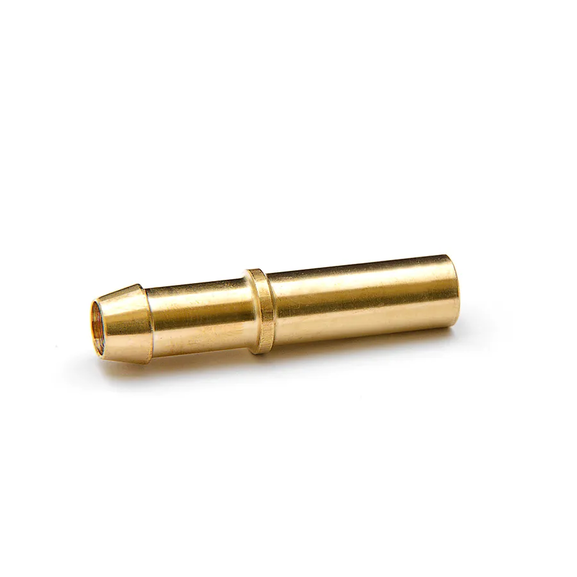

88102 Hose barb adapter with pipe end
Specifications
| Item number: | Dia. D mm | Dia. D1 mm | Dia. D2 mm | Dia. D3 mm | Hose I.D. mm | A | ||
|---|---|---|---|---|---|---|---|---|
| 88102 15x12 | 12,0 | 13,0 | 9,5 | 15 | 12 | 45,0 | ||
| 88102 18x18 | 17,0 | 18,0 | 14,0 | 18 | 18 | 75,0 | ||
| 88102 4x3 | 3,0 | 3,5 | 1,5 | 4 | 3 | 45,0 | ||
| 88102 4x4 | 4,5 | 5,5 | 3,0 | 4 | 4 | 45,0 | ||
| 88102 5x5 | 5,0 | 6,3 | 3,5 | 5 | 5 | 3/16 | 43,5 | 20,0 |
| 88102 5x6 | 7,0 | 8,5 | 3,5 | 5 | 6 | 1/4 | 41,5 | 18,0 |
| 88102 6x6 | 7,0 | 8,5 | 4,5 | 6 | 6 | 1/4 | 41,5 | 18,0 |
| 88102 10x6 | 7,0 | 8,5 | 5,0 | 10 | 6 | 1/4 | 45,0 | 18,0 |
| 88102 8x6 | 7,0 | 8,0 | 5,0 | 8 | 6 | 1/4 | 45,0 | 18,0 |
| 88102 8x8 | 9,0 | 10,5 | 6,0 | 8 | 8 | 5/16 | 45,0 | 18,0 |
| 88102 15x8 | 9,0 | 10,0 | 6,5 | 15 | 8 | 5/16 | 48,0 | 20,0 |
| 88102 10x8 | 9,0 | 10,0 | 7,0 | 10 | 8 | 5/16 | 48,0 | 20,0 |
| 88102 8x10 | 11,0 | 12,0 | 6,0 | 8 | 10 | 3/8 | 47,0 | 20,0 |
| 88102 10x10 | 11,0 | 12,0 | 8,5 | 10 | 10 | 3/8 | 47,0 | 20,0 |
| 88102 12x10 | 11,0 | 12,0 | 9,0 | 12 | 10 | 3/8 | 47,0 | 20,0 |
| 88102 12x12 | 13,0 | 14,5 | 10,0 | 12 | 12 | 1/2 | 47,0 | 20,0 |
