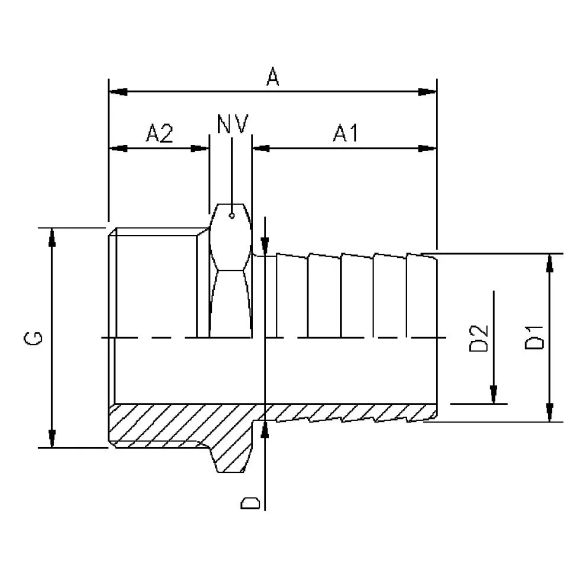

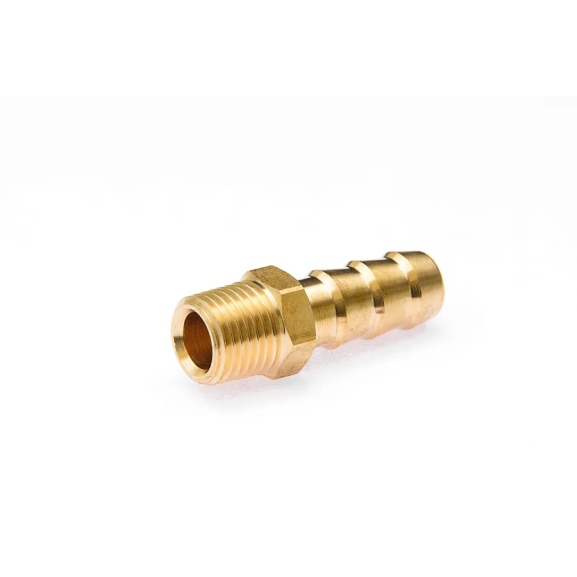

1004BC Hose barb adapter
Specifications
| Item number: | VVS code xxx | A | A1 | HEX | A2 | Thread G | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004BC 11/4x32DZR | 132 | 61,0 | 35,0 | 44 | 17,5 | 11/4 | 32,8 | 32,0 | 32 DZR | 11/4 | 25,0 |
| 1004BC 11/2X38DZR | 168 | 66,5 | 40,0 | 50 | 17,5 | 11/2 | 38,8 | 38,0 | 38 DZR | 11/2 | 32,0 |
| 55,5 | 35,0 | 13,0 | 1 | 32,8 | 32,0 | 32 DZR | 1/4 | 25,0 | |||
| 1004BC 2X50DZR | 150 | 90,5 | 60,0 | 65 | 21,0 | 2 | 50,6 | 50,0 | 50 DZR | 2 | 42,0 |
