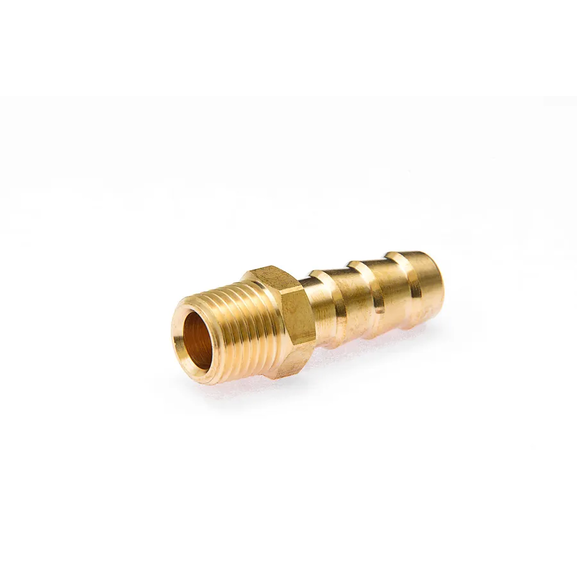

1004B Hose barb adapter DZR
Specifications

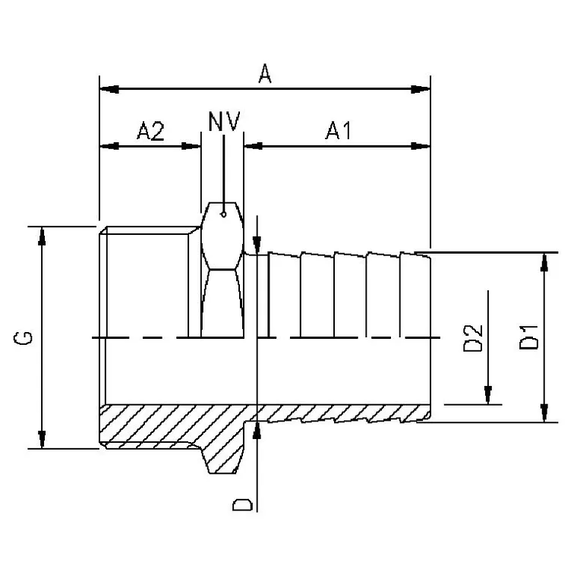

| Item number: | Thread R | Hose I.D. mm | Hose I.D. inch. | VVS code xxx | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004B 11/4X32 DZR | 11/4 | 32 DZR | 11/4 | 132 | 32,0 | 32,8 | 25,0 | 61,0 | 35,0 | 17,5 | 44 |
| 1004B 11/2X38 DZR | 11/2 | 38 DZR | 11/2 | 168 | 38,0 | 38,8 | 32,0 | 66,5 | 40,0 | 17,5 | 50 |
| 1004B 2X50 DZR | 2 | 50 DZR | 2 | 150 | 50,0 | 50,6 | 42,0 | 90,5 | 60,0 | 21,0 | 65 |
