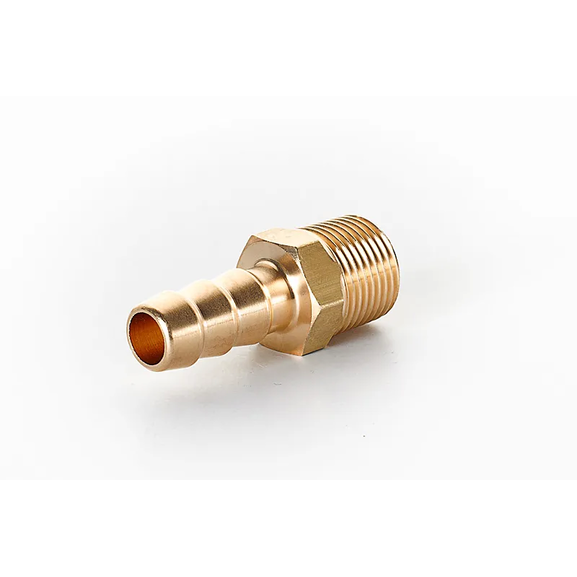

1004B Hose barb adapter

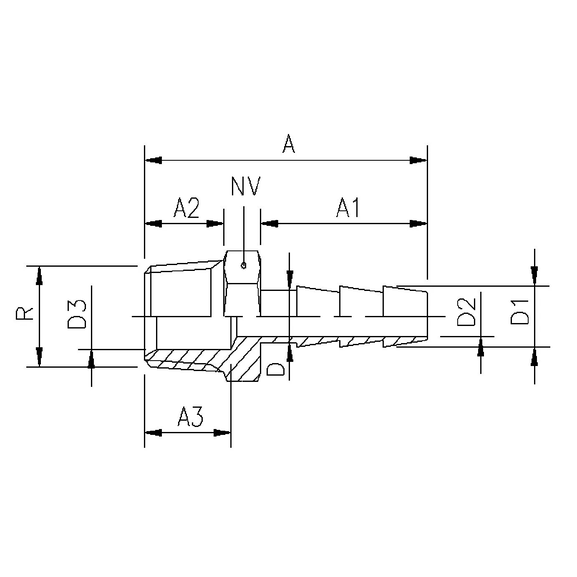

Specifications
| Item number: | Thread R | Hose I.D. mm | Hose I.D. inch. | VVS code xxx | Dia D. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004B 1/8x8 | 1/8 | 8 | 5/16 | 008 | 8,0 | 9,0 | 6,5 | 6,5 | 38,0 | 23,0 | 10,0 | 12,0 | 11 |
| 1004B 1/8x10 | 1/8 | 10 | 3/8 | 010 | 10 | 11,5 | 6,5 | 6,5 | 39,5 | 24,5 | 10,0 | 12,0 | 13 |
| 1004B 1/8x3 | 1/8 | 3 | 1/8 | 3 | 4 | 2 | 6,5 | 34 | 19,0 | 10,0 | 12,0 | ||
| 1004B 1/8x4 | 1/8 | 4 | 1/8 | 004 | 4,5 | 5 | 3 | 6,5 | 35,5 | 20,5 | 10,0 | 12,0 | 11 |
| 1004B 1/8x5 | 1/8 | 5 | 3/16 | 005 | 5 | 6 | 4,0 | 6,5 | 36,6 | 21,6 | 10,0 | 12,0 | 11 |
| 1004B 1/8x6 | 1/8 | 6 | 1/4 | 006 | 6,5 | 7,5 | 5,0 | 6,5 | 38,0 | 23,0 | 10,0 | 12,0 | 11 |
| 1004B 1/4x3 | 1/4 | 3 | 3 | 4 | 2 | 8,1 | 35 | 19,0 | 11,0 | ||||
| 1004B 1/4x5 | 1/4 | 5 | 3/16 | 035 | 5,5 | 6 | 4,0 | 8,1 | 37,6 | 21,6 | 11,0 | 12,0 | 14 |
| 1004B 1/4x6 | 1/4 | 6 | 1/4 | 036 | 6,5 | 7,5 | 5,0 | 8,1 | 39,0 | 23,0 | 11,0 | 12,0 | 14 |
| 1004B 1/4x8 | 1/4 | 8 | 5/16 | 038 | 8,0 | 9,0 | 6,5 | 8,1 | 39,0 | 23,0 | 11 | 12,0 | 14 |
| 1004B 1/4x10 | 1/4 | 10 | 3/8 | 040 | 10 | 11,5 | 8,0 | 8,1 | 40,5 | 24,5 | 11,0 | 12,0 | 14 |
| 1004B 1/4x12 | 1/4 | 12 | 1/2 | 012 | 12,0 | 13,0 | 8,0 | 8,1 | 40,5 | 24,5 | 11,0 | 12,0 | 14 |
| 1004B 3/8x6 | 3/8 | 6 | 1/4 | 066 | 6,5 | 7,5 | 5,0 | 10,1 | 42,0 | 23,0 | 13,0 | 12,0 | 17 |
| 1004B 3/8x8 | 3/8 | 8 | 5/16 | 068 | 8,0 | 9,0 | 6,5 | 10,1 | 42,0 | 23,0 | 13,0 | 12,0 | 17 |
| 1004B 3/8x10 | 3/8 | 10 | 3/8 | 070 | 10 | 11,5 | 8,0 | 10,1 | 43,5 | 24,5 | 13,0 | 12,0 | 17 |
| 1004B 3/8x12 | 3/8 | 12 | 1/2 | 042 | 12 | 13,0 | 10,1 | 10,1 | 43,5 | 24,5 | 13,0 | 12,0 | 17 |
| 1004B 3/8x16 | 3/8 | 16 | 5/8 | 016 | 16,0 | 18,0 | 10,1 | 10,1 | 43,5 | 24,5 | 13,0 | 15,0 | 18 |
| 1004B 1/2x10 | 1/2 | 10 | 3/8 | 100 | 10 | 11,5 | 8,0 | 15,1 | 47,0 | 24,5 | 16,0 | 18,0 | 21 |
| 1004B1/2x12 | 1/2 | 12 | 1/2 | 072 | 12,0 | 13,0 | 10,1 | 15,1 | 47,0 | 24,5 | 16,0 | 18,0 | 21 |
| 1004B 1/2x16 | 1/2 | 16 | 5/8 | 046 | 16,0 | 18,0 | 12,0 | 15,1 | 47,0 | 24,5 | 16,0 | 18,0 | 21 |
| 1004B 1/2x20 | 1/2 | 20 | 1/2 | 20,0 | 22,0 | 14,8 | 15,1 | 47,0 | 29,0 | 16,0 | 8,0 | ||
| 1004B 3/4x16 | 3/4 | 16 | 5/8 | 076 | 16,0 | 18,0 | 13,0 | 20,1 | 52,0 | 24,5 | 19,0 | 22,0 | 27 |
| 1004B 3/4x20 | 3/4 | 20 | 3/4 | 020 | 20,0 | 22,0 | 16,0 | 20,1 | 56,5 | 29,0 | 19,0 | 22,0 | 27 |
| 1004B 1''x20 | 1 | 20 | 3/4 | 050 | 20,0 | 20,0 | 16,0 | 22,0 | 61,0 | 29,0 | 22,0 | 25,0 | 34 |
| 1004B 1''x25 | 1 | 25 | 1" | 025 | 25,0 | 27,0 | 20,0 | 22,0 | 67,0 | 35,0 | 22,0 | 25,0 | 34 |
