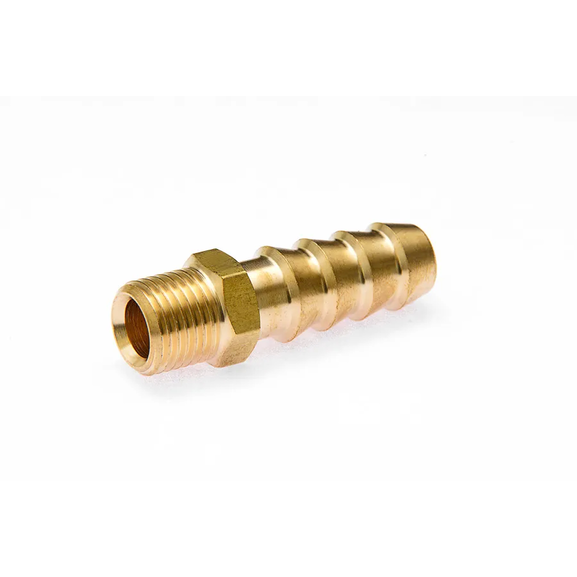

1004BG Hose barb adapter for gas
Specifications

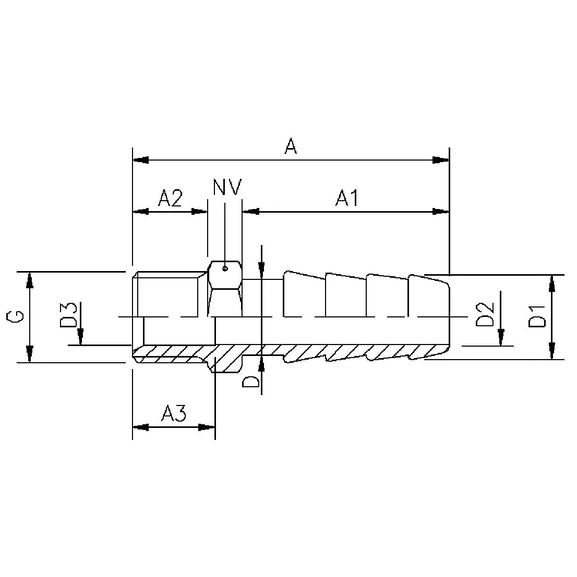

| Item number: | Thread G | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004BG 1/4x11 | 1/4 | 11 | 7/16 | 11,0 | 12,5 | 8 | 46,0 | 30,0 | 11,0 | 12,0 | 14 |
| Item number: | Thread G | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004BG 1/4x11 | 1/4 | 11 | 7/16 | 11,0 | 12,5 | 8 | 46,0 | 30,0 | 11,0 | 12,0 | 14 |
