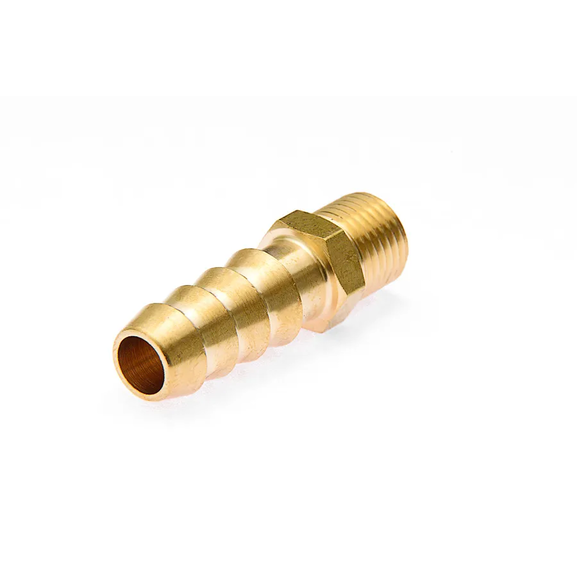

1003MG Hose barb adapter for gas
Specifications

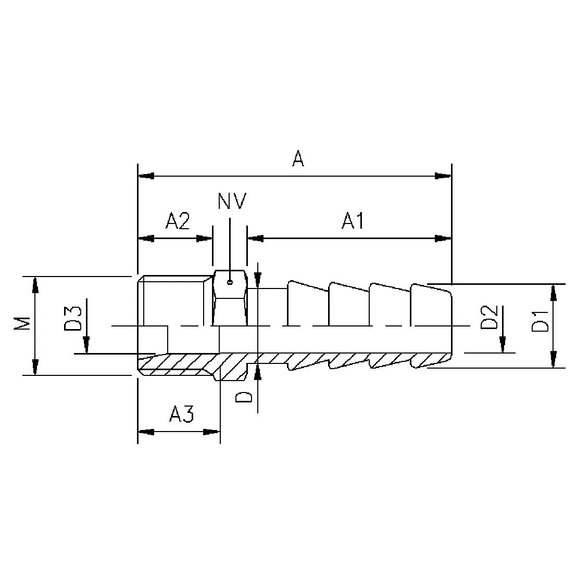

| Item number: | A | A1 | HEX | A2 | A3 | Metric thread M | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1003MG 14x1,5x11 | 46,0 | 30,0 | 14 | 11,0 | 12,0 | 14x1,5 | 12,5 | 11,0 | 11 | 7/16 | 8,0 | 8,1 |
| 1003MG 16x1,5x11 | 47,0 | 30,0 | 16 | 12,0 | 13,0 | 16x1,5 | 12,5 | 11,0 | 11 | 7/16 | 8,0 | 10,1 |
